How to make a bottle stopper

By: Marlen Kemmet

A good bottle of wine deserves an equally classy bottle stopper. And few of the stoppers available on store shelves look nearly as nice as one you can easily make yourself using a small chunk of wood, an inexpensive piece of hardware, and basic turning tools and skills.

1. Cut a piece of stock to 2x2" square by 2" long for the stopper blank. Crosscut the ends for flat, parallel surfaces. Since you’ll be using such a small amount of stock, look for the most figured wood you can find.

2. Mark diagonals on both ends of the blank to find centers. Use an awl and mallet to make a small indentation at each centerpoint.

3. Set your drill press to 1,200 RPMS or slower, and using a small handscrew clamp like shown in
Photo 1, drill a 23/64" hole " deep centered in one end of the stopper blank. Or, drill a 5/16" hole " deep in the center of the blank, and use the Penn States bottle stopper drill and tap set to tap the hole in the blank as shown in Photo 2. If you hand-tap the hole, be careful to slowly drive the threading tool straight into the hole and not at an angle. Either method enables you to thread the blank onto the screw chuck shown in Step 3.

TIP: A piece of masking tape wrapped around your drill bit " from the end of the bit provides a visual stop for drilling the correct depth hole as shown in Photo 1. I overlap the last 3/8" of the tape to create a “flag” that makes it easier to see when the tape contacts the blank.

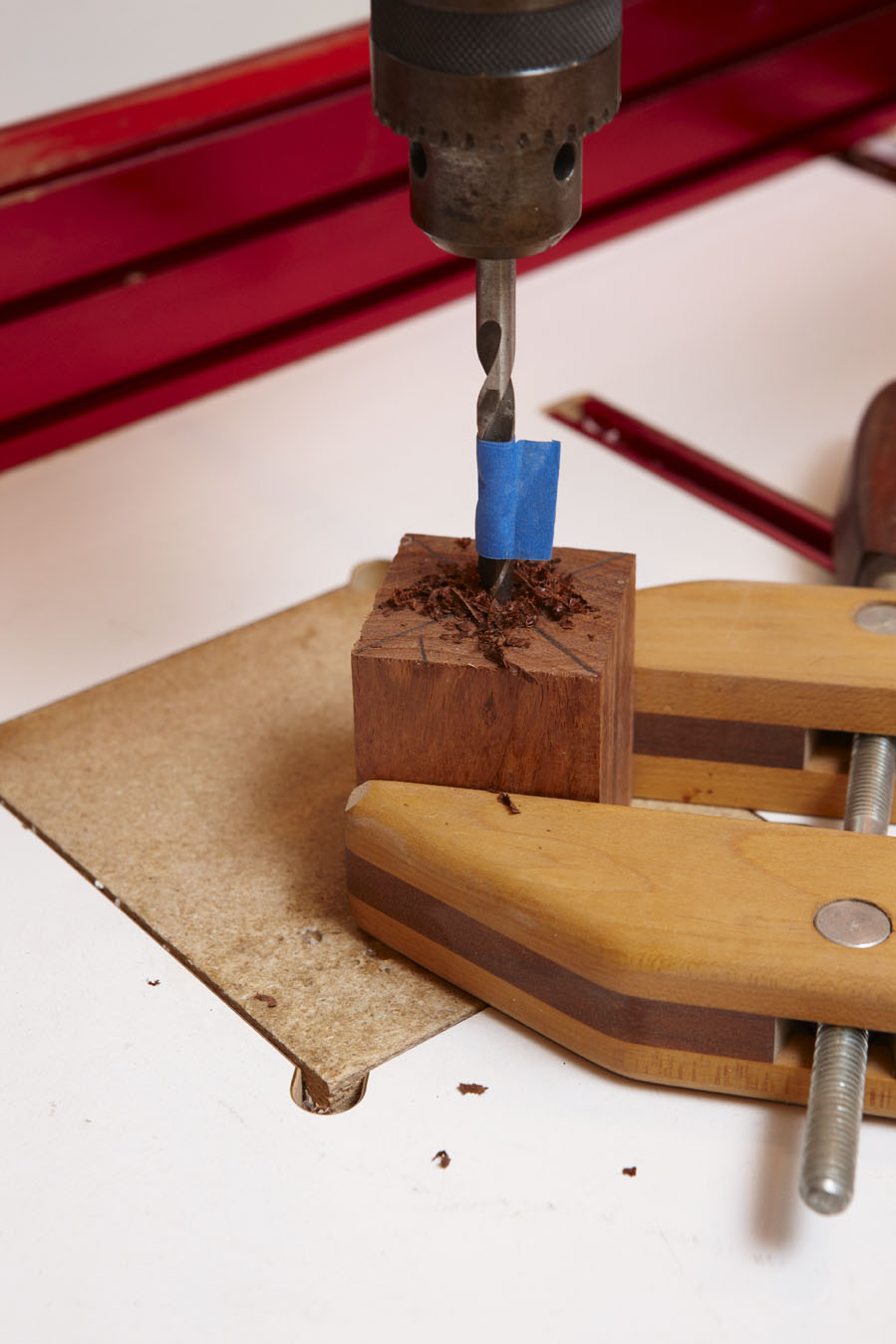

Photo 1 Drilling the hole in the bottle stopper blank

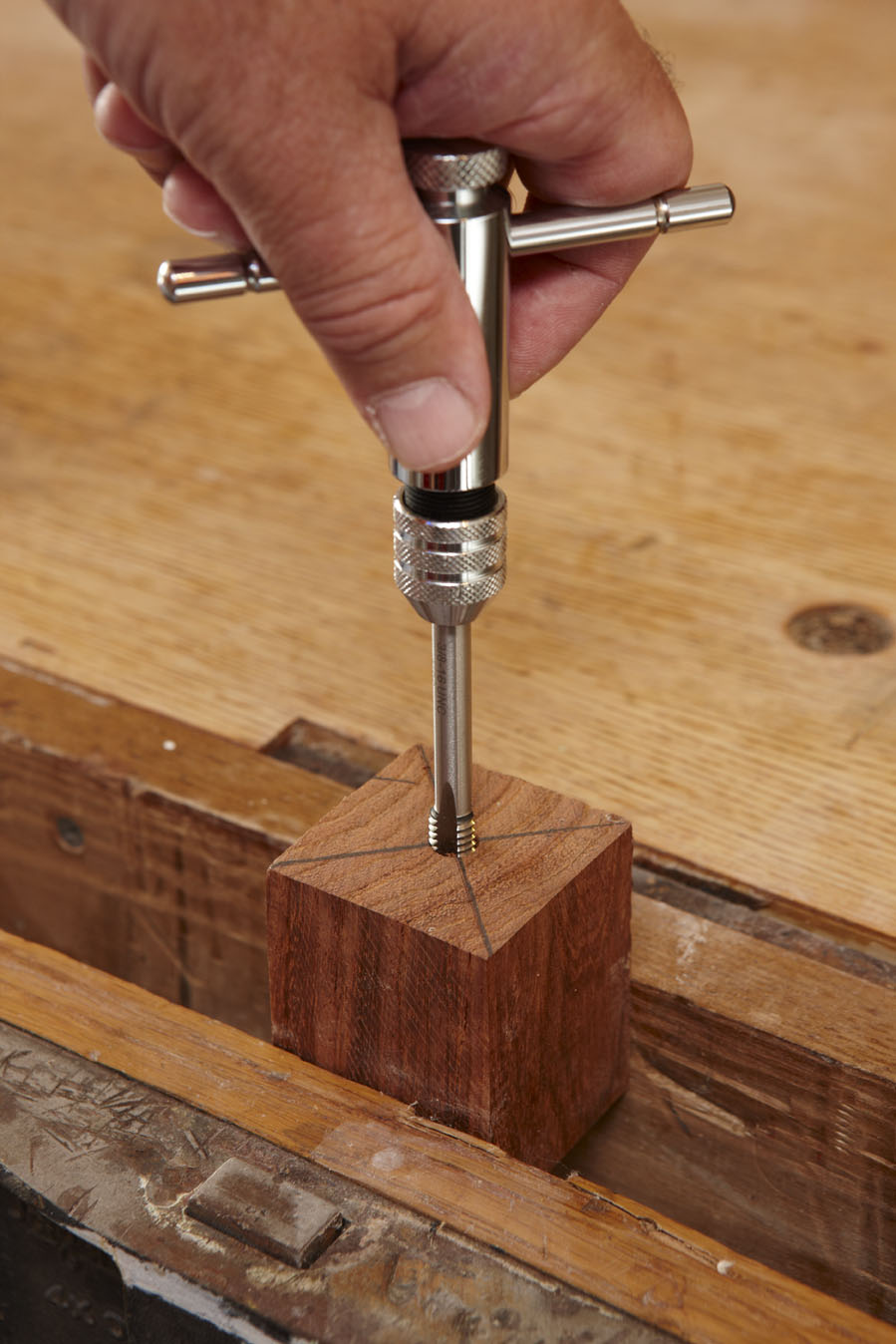

Photo 2 Tapping the 5/16" hole in the stopper blank

4. Thread the appropriate-sized bottle stopper screw chuck onto your headstock spindle. Just as the threading on headstock spindles comes in different sizes, so do Penn States chucks.

5. Thread the bottle stopper blank onto the threaded end of the chuck, drawing the bottle stopper blank flush (no gap) with the face of the chuck.

6. Move your tailstock cone center into position to support the exposed end of the bottle stopper blank. Fit the end of the cone center into the indented hole in the blank.

7. Position your tool rest just a bit below the center of the mounted blank. Set the lathe to a speed of about 1,500 RPM and with a spindle roughing gouge turn the blank round as shown in Photo 3.

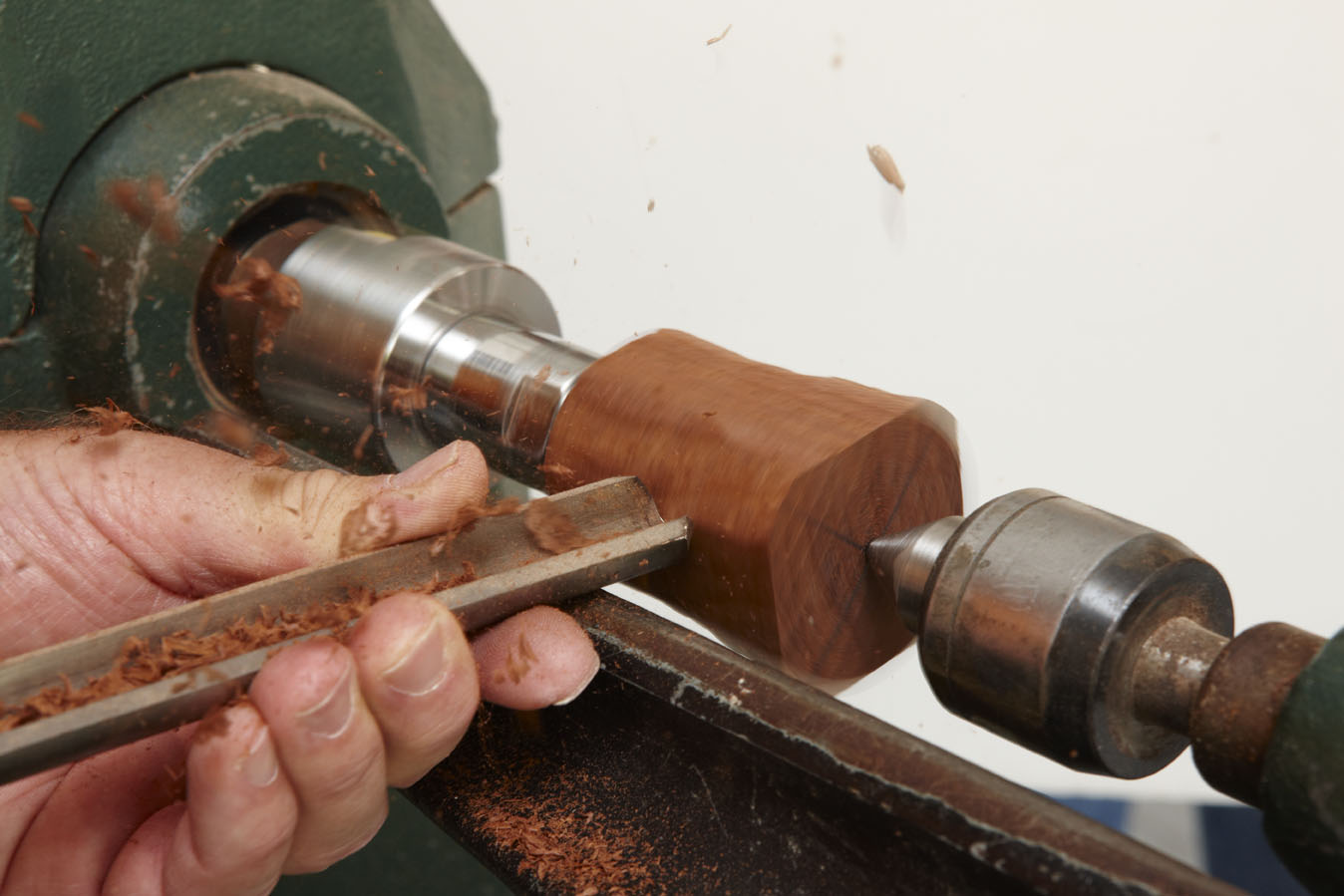

Photo 3 Turning the blank round

8. At this point make sure you have a good idea of the stopper shape you want to end up with. Consider what will be comfortable in your hand when inserting and removing the stopper from a wine bottle. Find a photo of an existing stopper that you like or make a pattern of the final shape, and adhere the pattern to a piece of cardboard or thin stock using spray adhesive. Transfer the profile reference lines to the stopper blank as shown in Photo 4. Placing the pattern or image behind your lathe provides a good visual reference when turning the blank to shape.

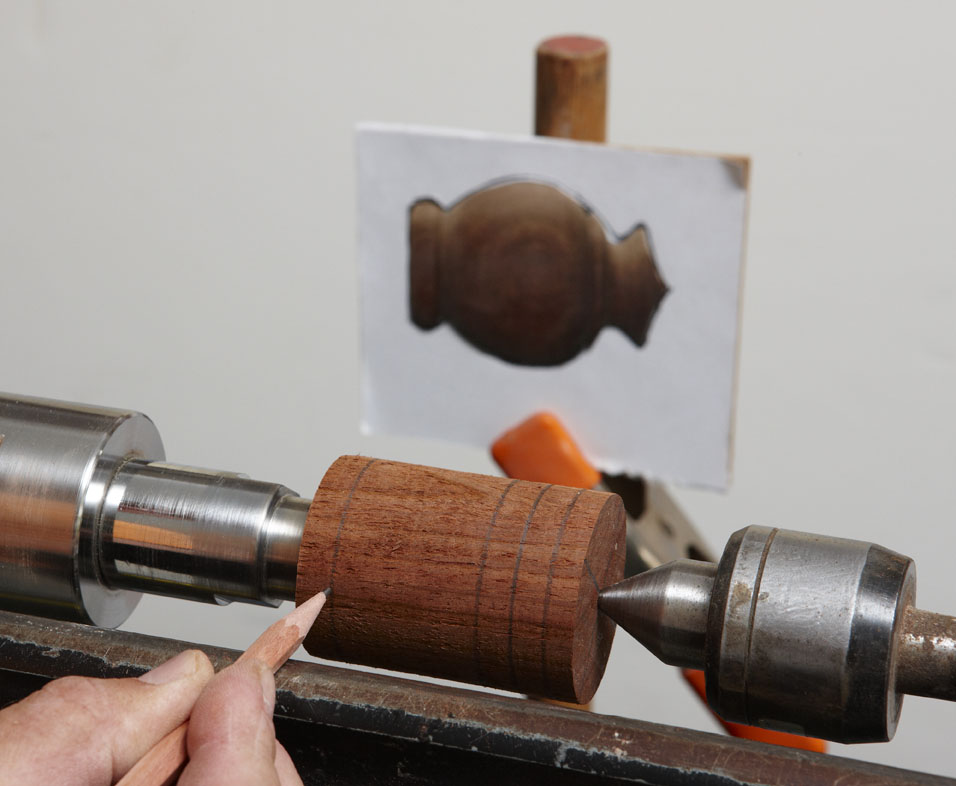

Photo 4 Marking reference lines on the cylindrical bottle stopper with the pattern behind it

9. Turn the blank to shape using the reference lines and pattern as guides. Use small gouges and skews for intricate cuts. As you turn the top end to shape, leave just enough material next to the cone center for sufficient support when sanding in the next step.

10. Finish-sand the turned stopper through at least 400-grit paper. If your lathe has a reverse, consider lightly sanding the stopper in reverse at the different grits. When sanding in one direction, some wood fibers may lay down, but if you sand in reverse, the micro fibers will be cut off with the abrasive, creating a very smooth surface.

11. Turn the end of the stopper next to the cone center to final shape as shown in Photo 5. Back the tail stock away from the stopper. Finish-sand the end smooth.

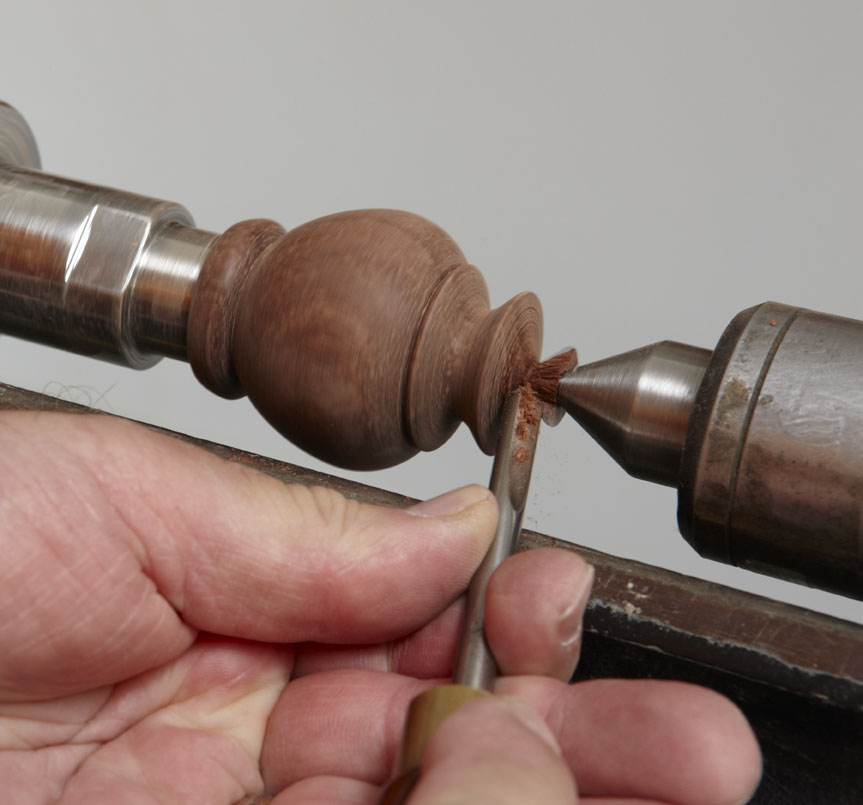

Photo 5 Turning the bottle stopper to finished shape

12 . Stop the lathe off and apply a small amount of EEE Ultra Shine to the stopper with a clean lint-free cloth. Turn the lathe on at a slow speed, and use a clean cloth to even out the abrasive paste over the entire surface of the stopper as shown in Photo 6. Increase the lathe speed, and buff the bottle stopper. EEE Ultra Shine contains ultra-fine abrasives (tripoli powder) that enhance a 400-grit finish to 2000--grit finish.

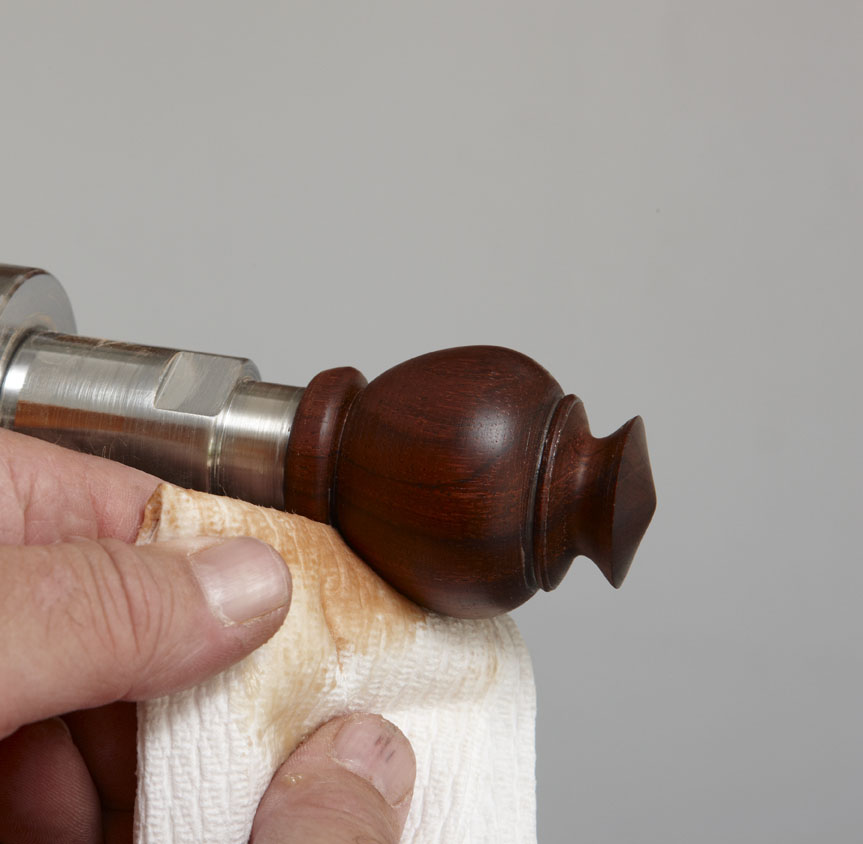

Photo 6 Applying the EEE Ultra Shine to the bottle stopper

13. Apply a coat of Shellwax cream to the bottle stopper, and allow it to dry for a few minutes. Start the lathe and at a speed of 1800 RPMS or slightly faster, buff the finish smooth. Applied over the EEE Ultra Shine, one application of Shellwax cream is sufficient.

14. Unthread the finished stopper from your lathe headstock. Apply a small amount of cyanoacrylate or epoxy into the hole in the stopper and thread the metal bottle stopper into the turned stopper. The metal should seat tightly against the bottom of the turned stopper. Immediately wipe off any adhesive squeeze-out being careful not to wipe any onto the turned stopper.

If you enjoyed making the stopper, consider turning a number more they make great stocking stuffers.
