Description

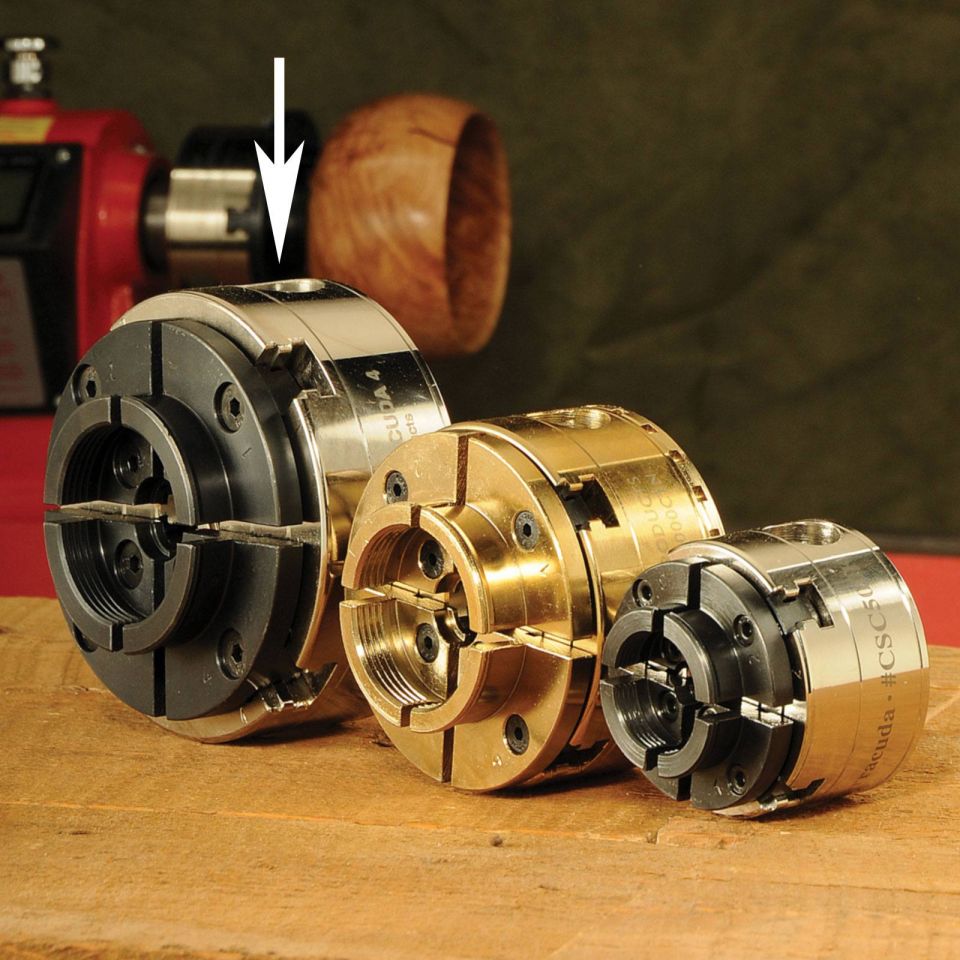

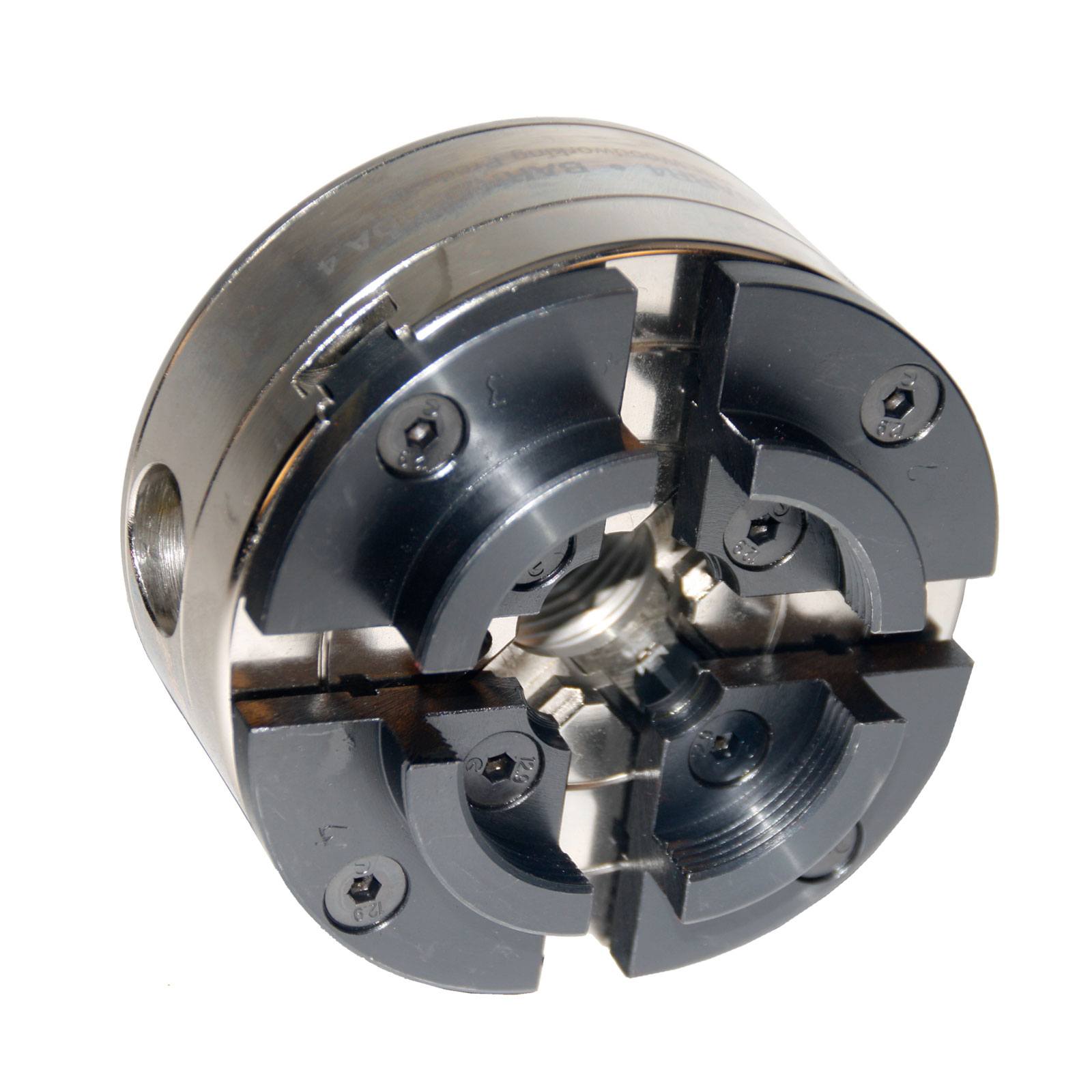

Versatile 9-piece Self Centering lathe chuck system for large lathes
This heavyweight, heavy-duty, large body chuck is ideal for larger lathes. Designed to be used on lathes with 10" swings and larger. Use it for your heaviest and largest turnings. Its geared key mechanism provides a powerful grip capable of holding large diameter work. The "T" handled key allows single hand tightening with a long shaft that clears larger diameter work. Standard thread is 1-1/2" x 8tpi. Adapters available: #LABAR418 converts to 1" x 8tpi, #LABAR4114 converts to 1-1/4 x 8tpi, #LABARM33 converts to M33 x 3.5mm
Complete Lathe Chuck system includes:
- Chuck Body
- #1 Step Jaws
- #2 Round Jaws (pre mounted)
- #3Wide Jaws
- Pin Jaws
- Screw Chuck
- Long Shaft Chuck Key
- "T" handled Allen wrench
- Wooden carrying case
Slideshow
Slide controls
Specifications
| Specification | Description |
|---|---|
| Type: | Key Operated |
| Compatible Spindle Sizes: | 1-1/2" x 8tpi |
| Included Jaws: | Pin,#1,#2,#3,Screw Chuck |
| Pin Jaw Grip: | Internal: 1-1/8" to 2-7/16" |
| #1 Step jaw gripping: | Internal step 1: 3/16" to 2-1/4 Internal step 2: 5/16" to 3" |
| #2 Standard Jaw gripping: | External: 1-3/4" to 3-11/16", Internal 2-3/8",Yes to 4-1/2" |
| #3 Large Round Jaw Gripping: | External; 3-11/16" to 5-9/16, Internal: 4-3/8",Yes to 6-1/2" |
| Large Flat Jaw Gripping: | External: up to 10" - Not Included |
| Small Flat Gripping: | Not Available |
| Category: | Barracuda 4 Jaw Chucks |
