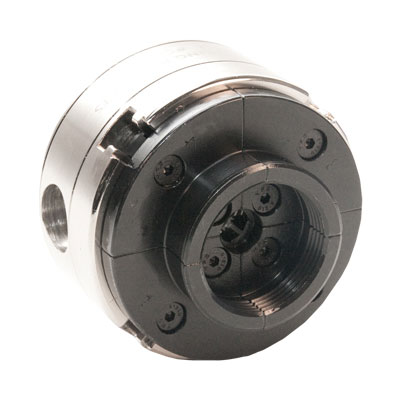

Barracuda2 Lathe Key Chuck System
Barracuda2 Lathe Key Chuck System Image 1
Click thumbnail to view additional images
View larger

Barracuda2 Lathe Key Chuck System

Item #: CSC3000C
$179.95
Quantity:
In Stock Ready to Ship
Shipping Charge: $10 shipping for ground service

Rating 5 out of 55 out of 55 out of 55 out of 55 out of 5

Description Specifications Shipping Reviews and Awards
Barracuda2

One of the easiest to use, best value chucks on the market
The Barracuda2 is an easy to use, high-performance, full accessorized key operated self centering four-jaw lathe chuck system. You only need one hand to use this lathe chuck as the "T" handle jaw tightening key enables you to to tighten the jaws with only one hand while your other hand is free to support your work.

Key Benefits:

  • Easy to use with one hand operation: The "T" handle key system makes it much easier to use than the lever, non-key chuck systems.
  • Will give you more turning confidence: Because you only need one hand to tighten the jaws, you can feel more confident and comfortable supporting your work with your free hand.
  • Powerful grip: to hold your work piece securely.
  • Smooth operation & balance: The Barracuda2 system is precision engineered and machined to provide you smooth operation and minimize vibration at almost any lathe speed.
  • Compatible for most woodturning projects: The variety of included jaw sizes and accessories means the Barracuda2 lathe chuck will mount most turning projects onto your lathe; including bowls, spindles, small turning projects and more.
  • Works with any Mini Lathe, Midi Lathe or Full Sized Lathe.
  • Changing jaws is quick and easy
  • Stout storage case for easy handling and organization: The blow molded plastic case will easily store, organize and secure the complete Barracuda2 Lathe Chuck System.
  • Virtually dust free use: the wood chips and dust clear out of the chuck drive gear with ease.

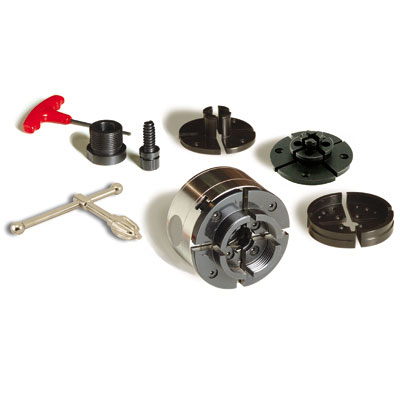

Complete Lathe Chuck system includes:

  1. Chuck Body
  2. #1 Step Jaws
  3. #2 Round Jaws
  4. #3 Round Jaws
  5. Pin Jaws
  6. Screw Chuck
  7. Headstock adapter
  8. "T" handled Jaw tightening key
  9. "T" handled Allen wrench
  10. Blow molded carrying case

Type: Key Operated, "C" Style
Compatible Spindle Sizes: 3/4" x 16tpi, 1" x 8tpi
Included Jaws: Pin,#1,#2,#3,Screw Chuck
Pin Jaw Grip: Internal: 1" to 2-1/4"
#1 Step jaw gripping: External: 3/32" to 1-3/8", Internal: 11/16" to 2-3/8"
#2 Standard Jaw gripping: External: 1-1/2" to 2-5/8 " , Internal: 2" to 3-3/8"
#3 Large Round Jaw Gripping: External: 3-1/16" to 4-3/8
Large Flat Jaw Gripping: External: up to 8" - Not Included
Small Flat Gripping: External up to 5" - Not Included
Category: Barracuda 4 Jaw Chucks
  • Package Weight: 9.78 pounds
  • Shipping Charge: $10 shipping for ground service
  • Packing: Item is shipped in its own box.

Note: Above shipping policies apply to Continental US only. We will call or email to advise you of shipping policies to other locations.

Average Customer Review: 5 out of 55 out of 55 out of 55 out of 55 out of 5 19 Reviews

Write an online review and share your thoughts with others.

4 out of 54 out of 54 out of 54 out of 54 out of 5 Not a Bad Lathe Chuck
Reviewer: Wayne Bliss (Leslie, MI)
Submitted: 6.23.2009

The Barracuda2 chuck was a replacement for a previous Penn State lever action chuck. I expected the key chuck to work much smoother than it does but it is a good value. I have already had a chance to change the chuck jaws and that is a handy feature. I have ordered the multi-tooth spur insert and can't wait to try it out as well.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Expand your Lathes capability
Reviewer: Philip Uruburu (Central Islip, NY)
Submitted: 6.2.2009

Excellent chuck, I especially like the one hand operation of the chuck key, allows for support and centering of the work, Great quality at a very affordable price. Turned my first goblet this week.

4 out of 54 out of 54 out of 54 out of 54 out of 5 Outstanding Chuck
Reviewer: terry stolzoff (chula vista, CA)
Submitted: 5.26.2009

Outstanding chuck.

4 out of 54 out of 54 out of 54 out of 54 out of 5 CSC3000C
Reviewer: Christopher Nelson (Medina, OH)
Submitted: 5.21.2009

I replaced my JET chuck with-in 10 min. of getting the delivery. Went to the box of the largest jaws in the box and exchanged them. Attached a vase that I thought was finished but my teacher thought it needed to be hollow formed some more. Using one hand on pot & the other on chuck key has made a big difference. One needs more than 1/8" grip to make safe. I must have put too much side force as I was drawing the gouge out -- The pot poped off & caught my left little finger. Crack ! That wasn't the pot ! At 66 I'm still learning some hard lessons. How much torque will this chuck / key system take ?

5 out of 55 out of 55 out of 55 out of 55 out of 5 a great product
Reviewer: judy mueller (kimball, MN)
Submitted: 5.12.2009

This is a great chuck for beginners and all level turners.
