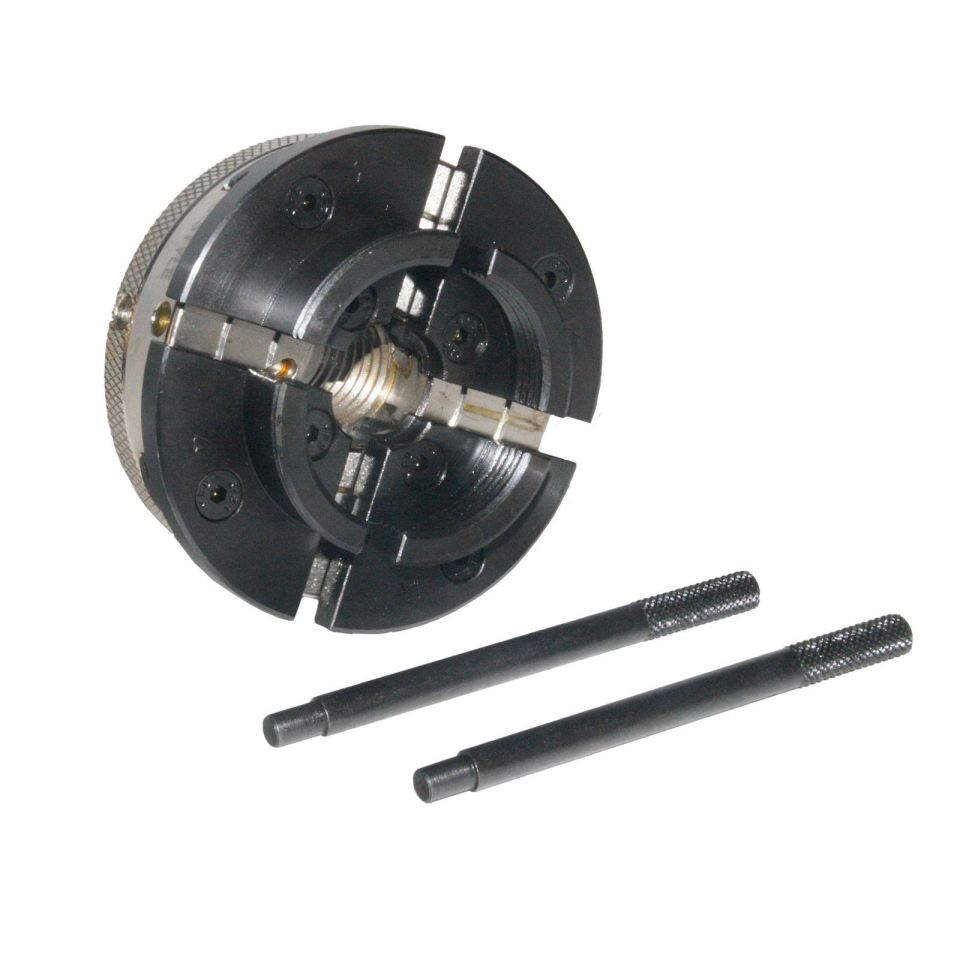

Mini Grip 4 Jaw Lathe Chuck System: includes 3 sets of jaws
Thumbnail Filmstrip of Mini Grip 4 Jaw Lathe Chuck System: includes 3 sets of jaws Images
Description
Includes 3 sets of Jaws!PSI developed the PSI Mini-Grip 3 as the ultimate mini Self Centering lathe chuck. This 4 jaw self-centering system provides everything you need in a mini lathe chuck system.
It fits mini and midi lathes with 3/4" x 16tpi and 1" x 8tpi headstock threads.

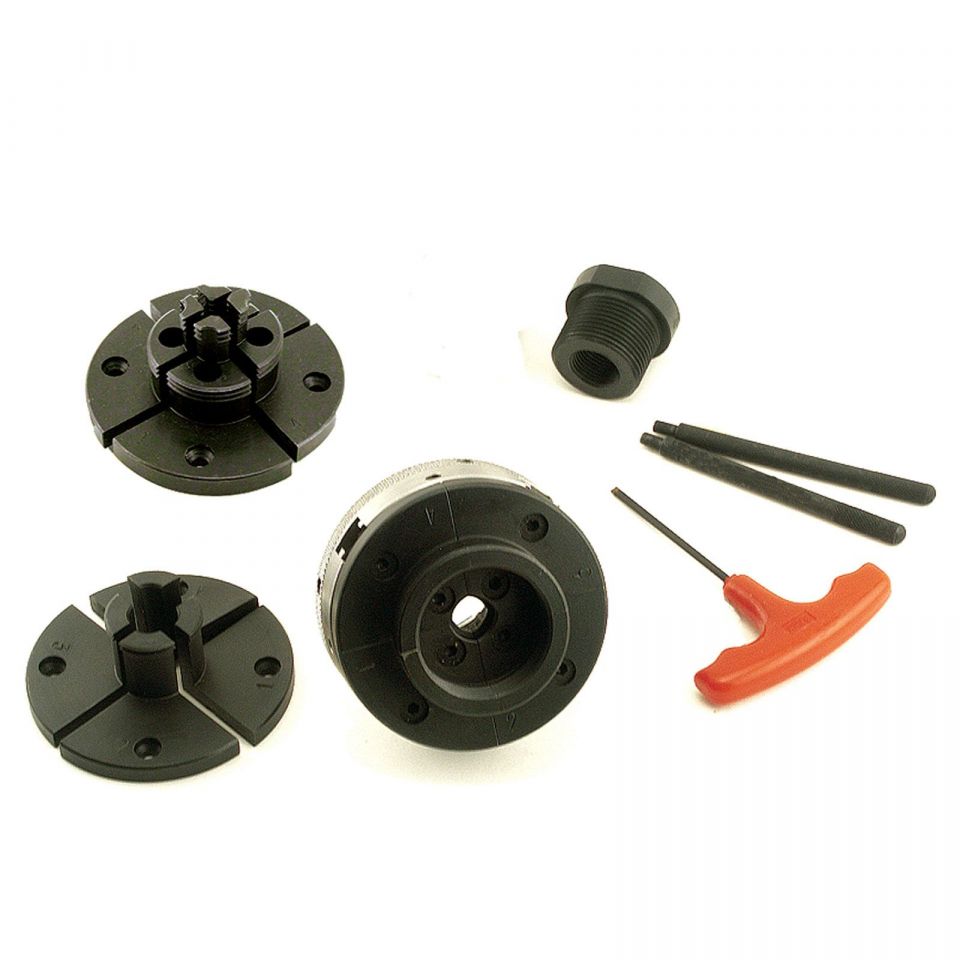

Chuck Includes:
·#1 Step Jaws
·#2 Jaws (included)
·Headstock adapters for 3/4" x 16tpi and 1" x 8tpi
·Allen wrench and set of tightening levers.
Specifications
| Specification | Description |
|---|---|
| Type: | Lever Operated, "C" Style |
| Compatible Spindle Sizes: | 3/4" x 16tpi, 1" x 8tpi |
| Included Jaws: | Pin,#1,#2 |
| Pin Jaw Grip: | Internal: 1" to 2-3/8" |
| #1 Step jaw gripping: | External: 3/32" to 1/38", Internal 11/16" to 2-3/4" |
| #2 Standard Jaw gripping: | External: 1-1/2" to 2-5/8", Internal: 2" to 3-3/8" |
| #3 Large Round Jaw Gripping: | External: 3-1/16" to 4-3/8" - Not Included |
| Large Flat Jaw Gripping: | Not Available |
| Small Flat Gripping: | External: up to 5" - Not Included |
| Category: | Economy 3 & 4 Jaw Chucks |
