Description

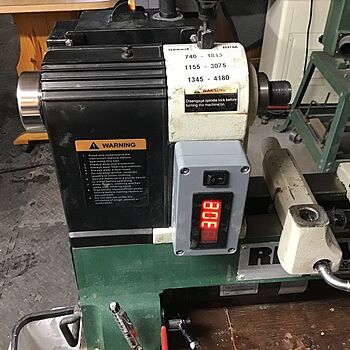

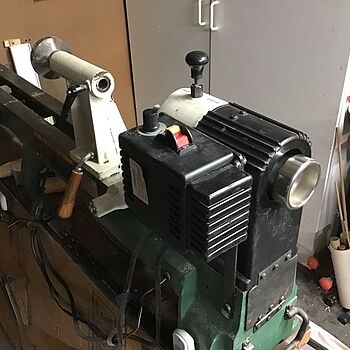

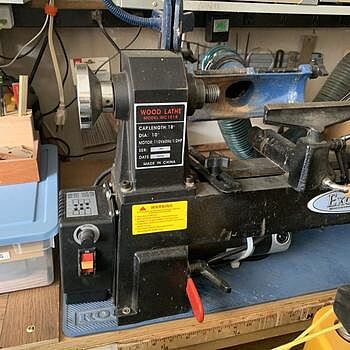

Convert your Multi Speed
Turncrafter,Jet,or Delta Midi Lathe to a Variable Speed
Workhorse.
With this variable speed kit you can experience infinite and
instantaneous speed control with a simple the turn of a knob. Easy to
set-up.
Click here to see if this fits your lathe

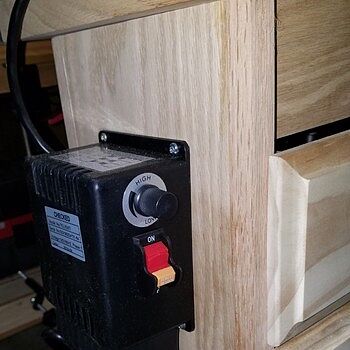

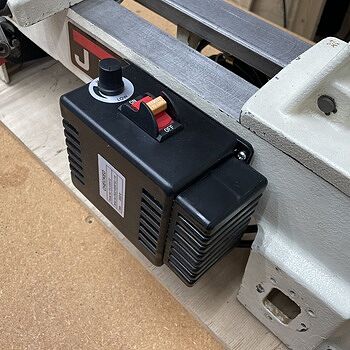

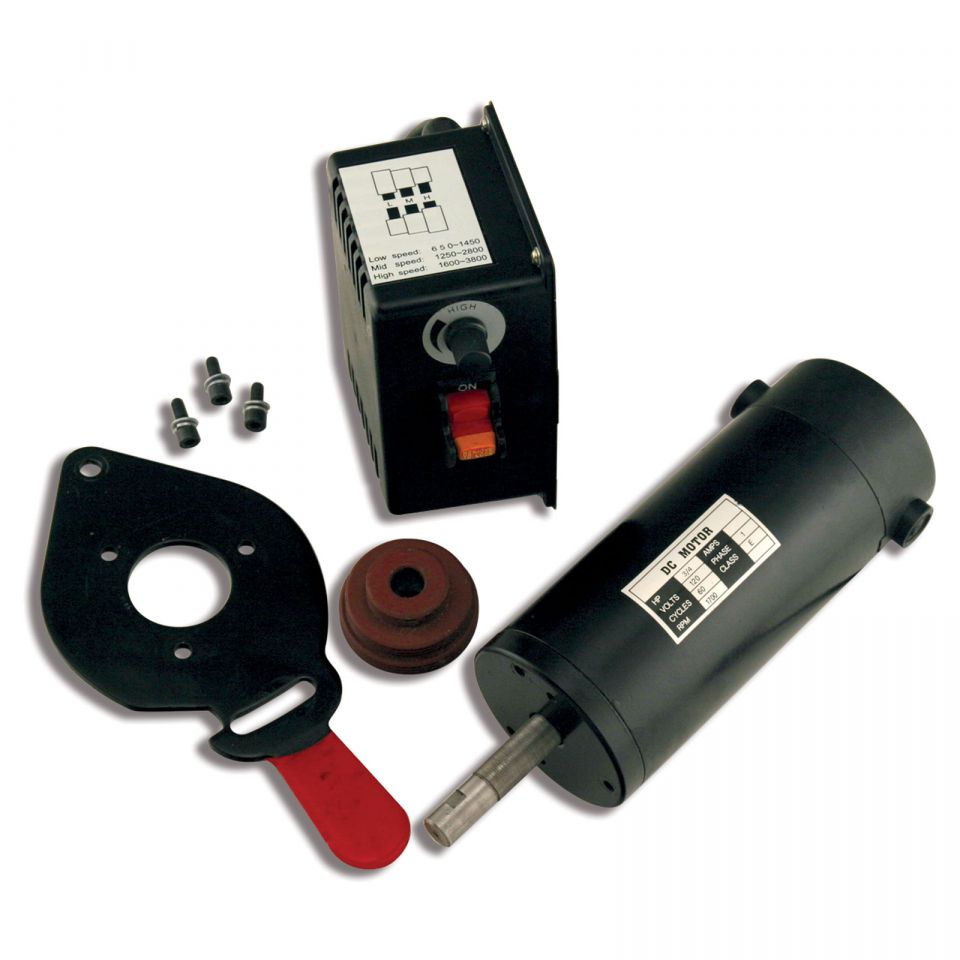

Kit includes: nuts, bolts, wiring, control box, motor, motor pulley,
assembly templates and assembly instructions for Turncrafter, Jet and

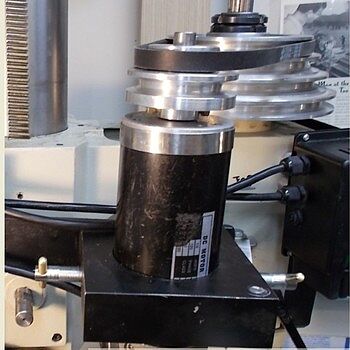

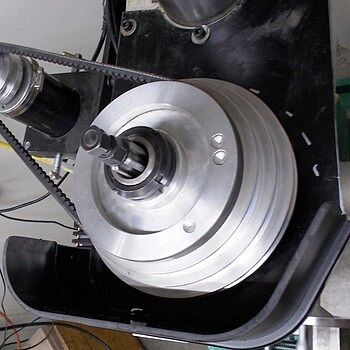

Delta lathes. Use your existing headstock pulley belt and motor mount
and simply mount our variable speed motor to the motor mount. Requires
drilling through your motor mounting plate to accept the variable speed
motor.

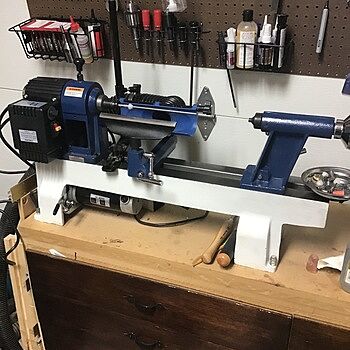

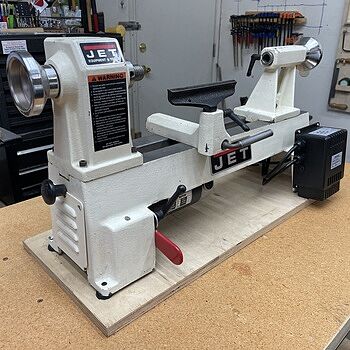

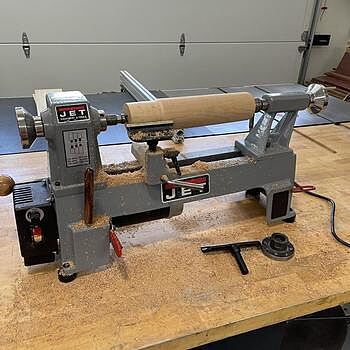

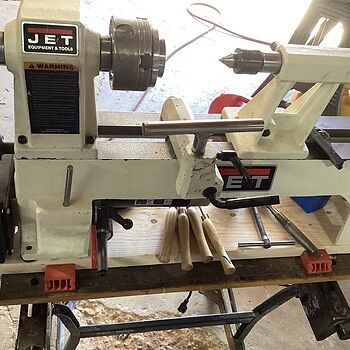

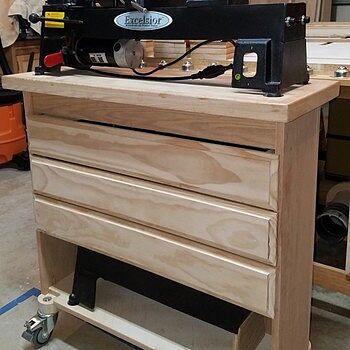

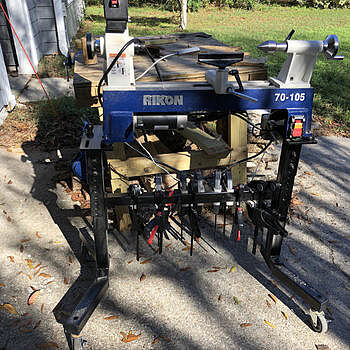

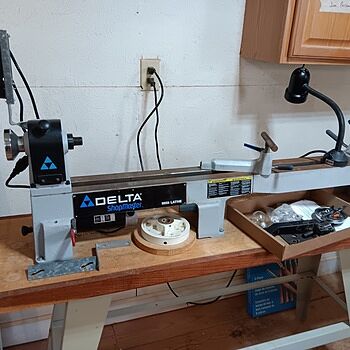

This kit will convert any of the following single speed lathes to variable speed:Jet Midi Lathe #JML-1014, Delta Midi Lathe #DEL46-455, PSI Midi Lathe #TCLPRO,Rockler Excelsior #33207, Harbor Freight #65345, #Rikon #70-105, #Grizzly #H8259
Specifications
Motor Speeds:
-Belt position 1: 650 - 1450 rpm
-Belt position 2: 1250 - 2800 rpm
-Belt position 3: 1600 - 3800 rpm

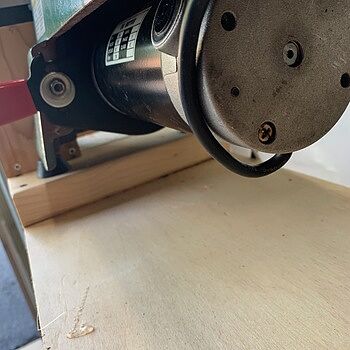

Motor:
•HP: 3/4
•Volts: 120V
•Cycles: 60
•RPM: 1700
•Phae: Single
•Class: E
•AMPS: 4.5
Measurements of Motor
•Shaft:
•.549 in dia - 1st of 1/2 of step
•.588 in dia - 2nda of 1/2 of step
•2-1/4in from tip of shaft to top of motor housing
•9-3/4in length of motor from tip of shaft to back of end cap
•Width of motor: 3in
