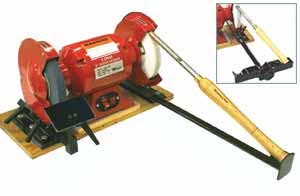

4 pc Precision Sharpening System
|
|
|
 |
Rating:
Code: LCGRIND4
Price:$114.95
|
|
|
Catalog: http://www.pennstateind.com/catalog/p/064.htm

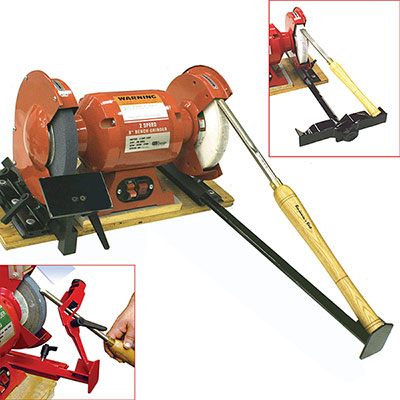

Get a perfect edge on your lathe chisels with PSI's Complete 4-Piece Precision Sharpening System
This sharpening system includes everything you need to grind perfect edges on your lathe chisels.Requires a grinder and installation.
The four piece set includes:
•Adjustable "V" Pocket Jig - Adjusts to accomodate chisels up to 27" long. Lay the handle of your tool in the "pocket" of the jig then adjust the jig length in order for the grinding to be at the proper angle. Rotate the tool to get a precision grind.
•Grinding Platform - Used for general purpose grinding for all chisels
•Finger Nail Jig - Ideal for quick grinding of finger nail profiles on shallow spindle gouges or side grinds on deep fluted bowl gouges. Lock in the the chisel then adjust the "V" pocket to the appropriate length.
•Skew Grinding Attachment - Positions on the end of the "V" pocket jig to assist you in grinding precision bevels on any skew chisel. |
| Customer Reviews |
Add Your Review |
| |
Best bang for the buck!
|
12/29/2007 - by Joe Giuliano from Charlotte, NC US
|
Just got into turning and needed a good way to sharpen lathe tools. I have a power sharpener (the new model with the port underneath and the slotted wheels) but it just wasn't helpful with some of the lathe tools. For example, it did great on skews and bowl gouges but fingernail gouges are nearly impossible to get right by hand.
Since I already have a variable speed bench grinder I thought I'd get the jigs that help you sharpen on that. A friend recommended PSI's system. The competition is a good bit more expensive than PSI's system when you factor in the accessories that you have to purchase separately.
It is definitely well worth the cost! I already see a huge difference in the way my tools cut when turning. Also, it is very easy and convenient to resharpen or touch up a tool in the middle of a project. I think this is a great system and it can't be beat for the price!
I also agree with the previous review by Kevin Sweere. There is room for improvement. I too had trouble with the screws that are supplied to mount the base units. I used an impact driver and pilot holes and still they stripped out. As for the locking bolts, I like the handles that can be pushed in/out to disengage the head so you don't have to rotate them completely around to keep turning the bolt. However, it would be a very simple improvement to add more holes in the base for these. I can only use one hole on each side so the other ones are totally useless because they are under the grinder wheel covers. Luckily the one lock handle is good enough to hold the bar firmly in place on each side.
One other suggestion I have is to incorporate some kind of indexing system. When you find the right length of the bar to sharpen each tool you'll want to mark it somehow. Inevitably you will scratch the paint off the bar trying to do this so it won't rub off. There should be some way to index the distances so you don't have to write/scratch them in bar for each tool. Maybe an engraved scale? That would be very, very helpful!
| |
Best Value
|
09/13/2007 - by Wood Magazine issue 179, October 2007 from Sharpening your tools: Critical for Success
|
"Sharpening your tools: Critical for success". "The Precision Sharpening System from Penn State Industries supplies everything you need to outfit your grinder for sharpening. With this jig, you'll get repeatable angles, sharp edges, and smooth bevels every time.
| |
good tool, good price, poor instructions.
|
09/10/2007 - by Kevin Sweere from Beavercreek, OH US
|
I just purchased, installed, and used (a bit) the PSI Precision Sharpening System for Lathe Chisels, LCGRIND4. In short, I agree with Wood Magazine's review -- good tool, good price, poor instructions.
I suggest both the installation and use instructions could be greatly improved. For example, a side view of the base and wheel with measurements would help. I found at rockler.com OneWay Manufacturing’s guides for their Wolverine Grinding Jig Instructions, Skew Grinding Attachment, and Vari-Grind Attachment. Since LCGRIND4 and the Wolverine system are quite similar, OneWay’s detailed guide were quite useful. To take it even one step further, I suggest you have an outsider install the rig on a variety of bench grinders (wheel size, hp, manf,. etc.) and then offer tips based on the various models. A couple videos online showing the tool in use would be great.
While the set-up works fine and creates some great edges, to improve the tool:
1. I suggest adding 2 more bolt holes on the Locking Bases positioned at the ends of the square tube. Because the grinder is round, holes / bolt locking arms near the center may be locked by the wheel. Holes farther away allow the user to select which two to use.
2. The current screws strip out so very easily. The wood screws used the mount the locking base should have a deeper Phillips cut, be made of a harder steel, and/or be replaced with hex drive screws.
I look forward to trying s’more Penn State Industry tools.
|
| |
