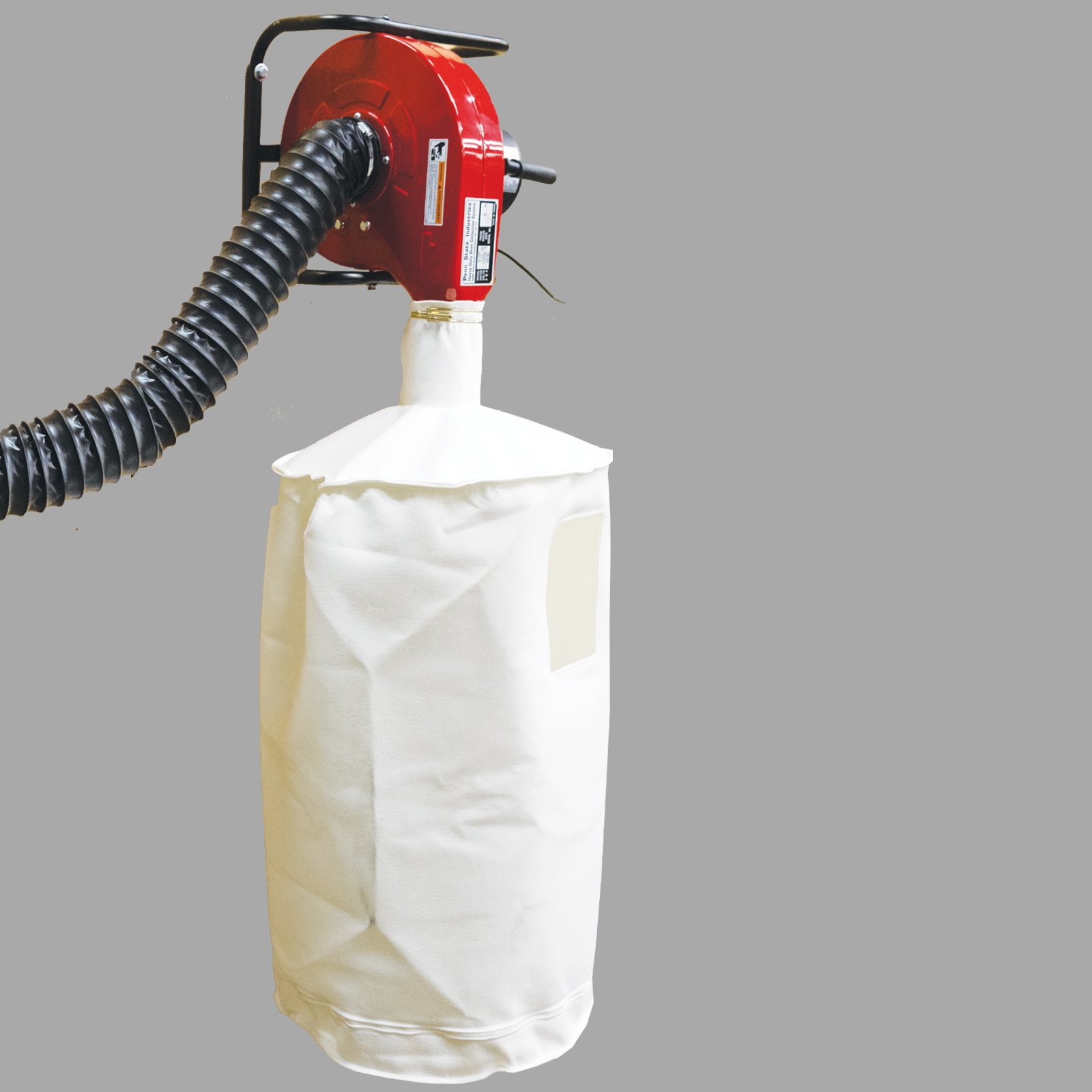

1.5HP DC3 Portable Dust Collector with 1 Micron Bag

Item #: DC3-1M
$249.95
Quantity:
In Stock Ready to Ship
Shipping Charge: $25 shipping for ground service
Add to Wishlist
Tell A Friend
View in Catalog

Rating 5 out of 55 out of 55 out of 55 out of 55 out of 5

Customers who bought this item also bought

4" Thumbscrew Hose Clamps: 5 Pack
4" Thumbscrew Hose Clamps: 5 Pack
#DBC4TS
Our Price: $7.10


4" Splice Hose to Hose Connector
4" Splice Hose to Hose Connector
#D4X4
Our Price: $4.75


Table Saw Dust Collection Guard
Table Saw Dust Collection Guard
#TSGUARD
Our Price: $184.95
Reg Price: $199.00
You Save: $14.05


Description Specifications Shipping Reviews and Awards

This Portable Dust Collector - Air Handler Can Be Positioned Anywhere for Pin Point Dust Collection Needs
This compact dust collection / air handling unit with a powerful 1-1/2HP motor to move air over 850 CFM. Light-weight, portable at less than 50 lbs, this unit can easily move to the job or be mounted for special air handling needs: Features

• 1-1/2HP 110V Motor
•Powerful 850CFM
•Standard 1-micron vu-thru collction bag
•Filter bag w/zipper for easy dust and chip removal.
• zipper on bag provides easy dust and chip removal.
•Collect dust from a single wood working machine
•Discharge comtaminated air containing smoke, ceramic dust, plaster dust and various non-volatile fumes
• For detailed specifications, click on the "Specifications" Tab

Style: Single Bag
Portability: Portable
Filter Type(s): 1 micron bag
Main Filter area (sq ft): 17
Filter Specification: 99% @ 1 micron
Nominal Voltage: 110,220
Phases: 1
Collector Footprint: 14" x 14"
Filter Footprint: 34" x 20"
Height (inches): 16.5
Sound Rating db: 62db
Max Static Pressure (inches): 8.5
Max Airflow through collector (CFM): 850
Running Amps: 16 @ 110V
Horsepower: 1.5
Main Inlet Size (inches): 4
Impeller Size (inches): 9
Impeller Material: Steel
Debris Collection Type: Fabric Bag
Shop Size (sq ft): Up to 400sq ft
Run Length (ft): 15
Suitable for Ductwork: N
Suitable for Multiple Tools: N
Category: Bag Style Dust Collectors
  • Package Weight: 48.00 pounds
  • Shipping Charge: $25 shipping for ground service
  • Packing: Item is shipped in its own box.

Note: Above shipping policies apply to Continental US only. We will call or email to advise you of shipping policies to other locations.

Average Customer Review: 5 out of 55 out of 55 out of 55 out of 55 out of 5 1 Reviews

Write an online review and share your thoughts with others.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Decent Power, Great filtration
Reviewer: David P. (Wexford, PA US, )
Submitted: 6.19.2007

I've used this for a couple of years in my shop, and I've been very happy with the performance. The filtration is absolutely excellent. Connected directly to a machine, it has very good vacuum. With a trash can separator lid as a makeshift cyclone, this still performs fairly well. It is more than enough for my jointer and planer. However, with a machine that produces a lot of fine dust, like a sander or table saw, I would recommend directly connecting it. This may be the best value buy in my shop.
