#DCMLPAK | Out of Stock
Lathe Dust Collection Package
Chips and fine sanding dust from your lathe are not only annoying but dangerous to your health. We've assembled this package so you can eliminate that irritating dust effectively and affordably. This system is compact, portable and all inclusive - it will easily fit into the smallest of shops.

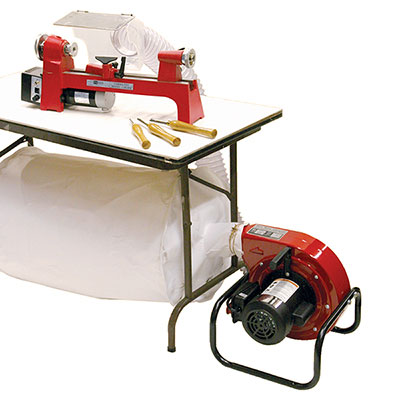

This special Package includes:
DC3-1M Portable Dust Collector: This Portable Dust Collector - Air Handler Can Be Positioned Anywhere for Pin Point Dust Collection Needs
This compact dust collection / air handling unit with a powerful 1-1/2HP motor to move air over 850 CFM. Light-weight, portable at less than 50 lbs, this unit can easily move to the job or be mounted for special air handling needs: Features
1-1/2HP 110V Motor
Powerful 850CFM
Standard 1-micron vu-thru collction bag
Filter bag w/zipper for easy dust and chip removal.
zipper on bag provides easy dust and chip removal.
Collect dust from a single wood working machine
Discharge comtaminated air containing smoke, ceramic dust, plaster dust and various non-volatile fumes
D08 - 8 ft. 4" PVC quality clear flexible hose.
2 hose clamps DLHOODC2- Clear dust hood - provides easy visibility and magnetically attaches to any lathe; simple to reposition. Adapts to lathes to 12" swing.
ONLY SHIPS IN CONTINENTAL USA
Specification | Description |
Style: | Single Bag |
Portability: | Portable |
Filter Type(s): | 1 micron bag |
Main Filter area (sq ft): | 17 |
Filter Specification: | 99% @ 1 micron |
Nominal Voltage: | 110220 |
Phases: | 1 |
Collector Footprint: | 14" x 14" |
Filter Footprint: | 34" x 20" |
Height (inches): | 16.5 |
Sound Rating db: | 62db |
Max Static Pressure (inches): | 8.5 |
Max Airflow through collector (CFM): | 850 |
Running Amps: | 16 @ 110V |
Horsepower: | 1.5 |
Main Inlet Size (inches): | 4 |
Impeller Size (inches): | 9 |
Impeller Material: | Steel |
Debris Collection Type: | Fabric Bag |
Shop Size (sq ft): | Up to 400sq ft |
Run Length (ft): | 15 |
Suitable for Ductwork: | N |
Suitable for Multiple Tools: | N |
Category: | Bag Style Dust Collectors |
