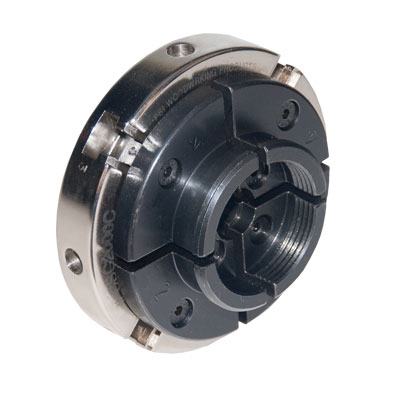

Barracuda Lathe Chuck System

Item #: CSC2000C

$139.95

Quantity:

In Stock Ready to Ship

Shipping Charge: $10 shipping for ground service

Add to Wishlist

View Instructions

View in Catalog

Rating

Maximum Performance
Our self-centering heavy duty chuck for full-size lathes makes easy work of your heaviest and largest turnings. The geared key mechanism provides a powerful grip capable of holding large diameter work. Designed for lathes with 10" swings or larger. Includes woodworm screw chuck. Weighs 8 lbs with a 4.5" diamater. Comes in a wooden carying case. Body thread 1-1/2" x 8tpi.

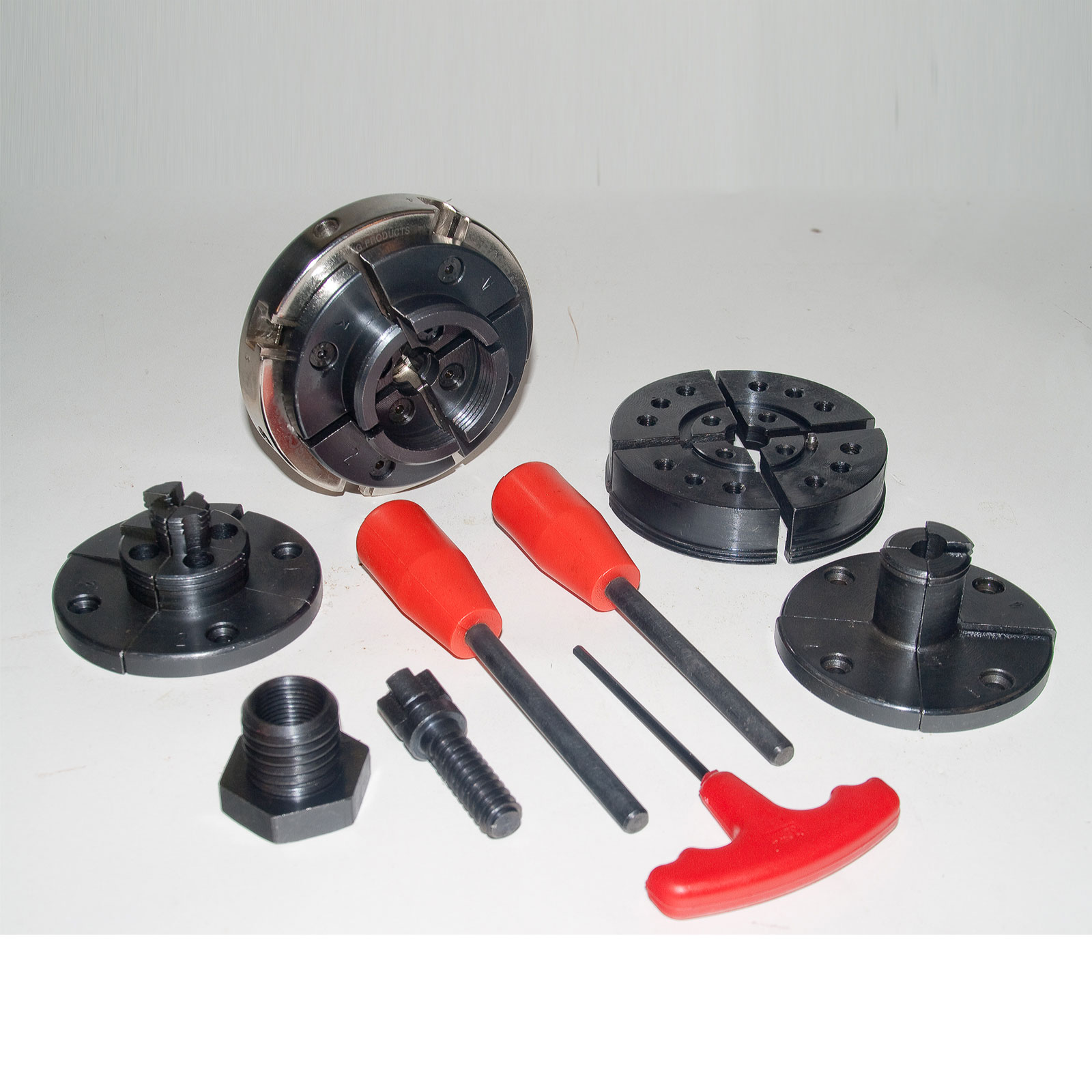

Purchase includes:

#1 Step Jaws
#2 Standard Round Jaws
#3 Wide Jaws
Pin Jaws
Screw Chuck adapter
Allen wrench, key tightening levers
Supplied in an attractive molded plasitc case

Includes adapter to mount to either 3/4" x 16tpi or 1" x 8tpi headstocks.

Type:	Lever Operated, "C" Style
Compatible Spindle Sizes:	3/4" x 16tpi, 1" x 8tpi
Included Jaws:	Pin,#1,#2,#3,Screw Chuck
Pin Jaw Grip:	Internal: 1" to 2-1/2"
#1 Step jaw gripping:	External: 3/32" to 1-1/2", Internal: 11/16" to 3-1/8"
#2 Standard Jaw gripping:	External: 1-1/2" to 2-7/8", Internal: 2" to 3-1/2"
#3 Large Round Jaw Gripping:	External: 3-1/16" to 4-1/2"
Large Flat Jaw Gripping:	External: up to 8-1/4" - Not Included
Small Flat Gripping:	External: up to 5-1/4" - Not Included
Category:	Barracuda 4 Jaw Chucks

Package Weight: 9.00 pounds
Shipping Charge: $10 shipping for ground service
Packing: Item is shipped in its own box.

Note: Above shipping policies apply to Continental US only. We will call or email to advise you of shipping policies to other locations.

Average Customer Review: 5 out of 5 10 Reviews

Write an online review and share your thoughts with others.

Barracuda chuck system

Reviewer: Bennie Fowler (Union Springs, AL)
Submitted: 12.23.2009

This is the best chuck system that I have found for the price. It securely held all sizes of wood I turned on my lathe. I would recommend it to anyone.

Barracuda Lathe Chuck

Reviewer: Terry Cramer (Lafayette, GA)
Submitted: 10.2.2009

Just got to use my new Barracuda Lathe Chuck and love it. The four Jaw System is easy to Use. I have tried other four jaw chucks that you have to adjust independently and they are a pain. Now all I have to Worry about is what my next project will be.

Barracuda Lathe Chuck System

Reviewer: Mike Dyszel (Collegeville, PA)
Submitted: 9.17.2009

Chuck is very versatile, quality construction and easy to use. Use this chuck for turning bowls and spindles.

Barracuda chuck for a Turncrafter Lathe

Reviewer: James McCumber (Cody, WY)
Submitted: 9.1.2009

I believe that the Chuck will make my Lathe time easier and more enjoyable. It is easy to change to different applications and it is nice for large work as well as small items. James McCumber

Barracuda

Reviewer: Lonnie Miller (Dixon, MO)
Submitted: 3.24.2009

great product
