2HP TEMPEST Cyclone Dust Collector: 14" Steel Impeller with Filter Canisters

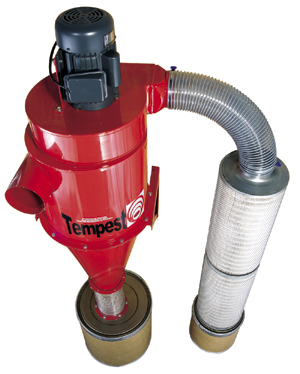

2HP TEMPEST Cyclone Dust Collector: 14" Steel Impeller with Filter Canisters Image 1
Click thumbnail to view additional images
View larger

2HP TEMPEST Cyclone Dust Collector: 14" Steel Impeller with Filter Canisters

Item #: TEMP142CX
$785.00
Quantity:
In Stock Ready to Ship
Shipping Charge: Custom shipping – we will contact you for charges

Rating 5 out of 55 out of 55 out of 55 out of 55 out of 5

Description Specifications Shipping Reviews and Awards
Improve Air Quality & Save with the PSIHome Shop 12" impeller Tempest Cyclone – Dual Cannister Style

This medium shop cyclone is ideal to connect to a single machine. Ideal for large basement or garage shops:
• Up to 12 drops
• Up to 20ft run
• Shop size to 1200sq ft
• 1000 CFM
• 2HP Motor
• For TEMP142CX Fan Curve click on the fan curve image above
•.. for more specifications click on the "Specifications Tab"

More about PSI Tempest Cyclones

The TEMP142CX advantage
PSI Tempest Cyclones are known to be the cleanest dust collection systems on the market. The cyclonic separation process captures 99.98% of all wood chips and dust particles that enter the collector. Centrifugal force drops particles of all sizes out of the air stream - everything from chips to microscopic particles. A dust bin positioned underneath the cyclone funnel captures the dust and chips in a trash container.

A Great Motor with a Great Warranty
TEMP142CX motors are designed and manufactured by an ISO 9001 certified manufacturer for continuous duty. The motors offer such exceptional reliability that we offer a 5-year warranty on the motor/blower assembly.

The Most Effective Cyclonic Filtration Available
The high filtration filter cannisters are certified to capture 99.98% of particles ½ micron or larger. In addition the filter media with 425 sq. ft.of filter media has over5 times the filter area of our competition, you'll be cleaning your filters only once for every 5 times you'll clean a filter from a competitor.

Superior Construction

• Durable17 gauge cyclone body construction
•"Neutral Vane" intake for better performance
• Includes sturdy wall mounting brackets
• Small footprint and low height fits under 96" ceiling

Efficient Impellers
PSI impellers are aerodynamically designed and balanced to place less stress on the motor during start-up and while running - this products high static pressure and high CFM while their heavy-duty construction provides tolerance to any chips that may happen to pass through.
Style: Cyclone
Portability: Stationary
Filter Type(s): 1/2 micron cannisters
Main Filter area (sq ft): 452
Filter Specification: 99.9% @ 1/2 micron
Nominal Voltage: 220
Phases: Single Phase
Collector Footprint: 20"dia
Filter Footprint: 13" dia
Height (inches): 96
Sound Rating db: 75db
Max Static Pressure (inches): 11
Max Airflow through collector (CFM): 1000
Running Amps: 10 @ 220V
Horsepower: 2
Main Inlet Size (inches): 6
Impeller Size (inches): 14
Impeller Material: Steel
Debris Collection Type: Drum
Shop Size (sq ft): Up to 1200sq ft
Run Length (ft): 30
Suitable for Ductwork: Y
Suitable for Multiple Tools: Y
Category: Cyclone Dust Collectors
  • Package Weight: 203.00 pounds
  • Shipping Charge: Custom shipping – we will contact you for charges
  • Packing: Item is shipped in its own box.
  • Special Shipping notes: "Multi Package Item" must ship ground

Note: Above shipping policies apply to Continental US only. We will call or email to advise you of shipping policies to other locations.

Average Customer Review: 5 out of 55 out of 55 out of 55 out of 55 out of 5 3 Reviews

Write an online review and share your thoughts with others.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Outstanding Product & Great Service
Reviewer: Tom Stockbridge (Burlington, IA)
Submitted: 3.11.2009

The dust collection unit that I chose for my 14 X 21 shop was the Temp142X from Penn State Industries. Some specifications and reasons for picking this unit are as follows: 2 HP 14" Impeller - 6 Fin 1/2 Micron Filter Canisters Up to 12 Drops Up to 30 Ft Runs Up to 1200 Sq. Ft. 5Yr. Warranty I used the economy 26 GA. duct work which was noticeably heavier than the stores. Penn State had everthing I needed to put the unit in. There is nothing that I ordered that they did not have. Everything went together very well, from the the cyclone unit to the duct work. It took me 5 days to put everything in. There were three accessories I added to my dust collection system. 1. Cyclone muffler, which really makes a difference. It is quieter than a shop vac. 2. A long range remote dust collection switch and motor starter. 3. Recirculating clean-out system to clean the micron canisters. Penn State Industries had quick shipping and great technical and product support if needed. I highly recommend Penn State Industries and their product. A special thank you to Bill Whitaker for his assistance and guidance. I started using the dust collection system on an entertainment unit I am building. It is quite the system! When I used to cut on the table saw in the past I always had dust all over my hands and arms when cutting. I also remember seeing very fine dust floating in the air after cutting. The biggest thing I noticed is I do not cough any more when cutting plywood and partical board. That sure is not the case now! Put the best dust collecting system in you can afford. That cough came from being in a dust filled wood shop for 35 years! These are the guys to buy it from! If you want to see my system go to my bolgs on lumberjocks.com and my handle is ND2ELK. Th

5 out of 55 out of 55 out of 55 out of 55 out of 5 Made a difference
Reviewer: Carl Schmidt (Wilmington, DE, )
Submitted: 3.15.2007

I just wanted to drop you a line about my recent purchase and thank PennState for the help. First I want to say that Bill was most instrumental in guiding me in the correct direction and perfect piece of equipment for my needs. I have a small shop in my basement and needed to control the dust as well as the noise.I purchased a Temp142CX with the filter canisters.I located the unit in an area outside my shop and located the filters in my shop as directed. What a difference! This unit has so much suction I have no problem running several machines at once. If I am only running one piece of equipment, I open a second door just to relieve pressure. The noise level is down and the dust is almost non-existant. This has been one purchase the wife actually enjoyed.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Impressive
Reviewer: Gordon Eyre (St George, UT, )
Submitted: 2.16.2007

I just planed my first batch of wood since installing my 2 hp Tempest cyclone and all I can say is WOW. Not a flake of sawdust on the floor or in the air, pretty impressive. Pre-Tempest I would have had a pile of shavings on the floor and all over the extension my tablesaw.
