Complete 4pc Precision Sharpening AND 8" Bench Grinder

Item #: LCGRINDSYS

Read 6 Reviews | Write a Review

$264.95

Regular Price: $289.90
You Save: $24.95 (9%)

Availability: Out of Stock / Eta Early March See Shipping Details

Out of Stock - Join the Wait List!

View in Catalog Print

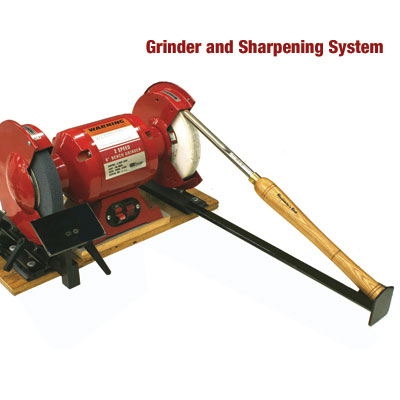

This complete system includes the 4pc Precision Sharpening System and 2-Speed 8" Bench Grinder

About the Complete 4pc Precision Sharpening System:
This sharpening system simplifies the daunting task of sharpening those complex profiles of your lathe chisels. Now you can get repeatable angles, sharp edges and smooth bevels every time. You'll see a difference right away in how your tools cut when you turn.

This system includes everything you need to grind perfect edge on nearly any lathe chisel. Requires a grinder and installation.

The four piece set includes:

Adjustable "V" Pocket Jig - Adjusts to accommodate gouges up to 27" long. Lay the handle of your tool in the "pocket" of the jig then adjust the jig length in order for the grinding to be at the proper angle. Rotate the tool to get a precision grind.
Grinding Platform - Used for general purpose grinding for all chisels
Finger Nail Jig - Ideal for quick grinding of finger nail profiles on shallow spindle gouges or side grinds on deep fluted bowl gouges. Lock in the chisel then adjust the "V" pocket to the appropriate length.
Skew Grinding Attachment - Positions on the end of the "V" pocket jig to assist you in grinding precision bevels on any skew chisel.

About the 2-Speed 8" Bench Grinder:
Use at the 1750 RPM low speed for lower heat buildup. Use at the faster 3450 RPM speed for quick grinding and shaping.

Balanced 1/2HP, 115V 2-speed induction motor
Wheel sizes: 1" wide x 8" diameter, 5/8" bore
Aluminum oxide grinding wheels: 60 and 120-grit
Weight is 42lbs

Complete 4pc Precision Sharpening AND 8" Bench Grinder Specifications

Specification	Description
Material Type:	High Speed Steel
Category:	Chisel Sharpening & Grinding

Complete 4pc Precision Sharpening AND 8" Bench Grinder Customer Reviews

Average Customer Review: 5 out of 5 6 Reviews

Write an online review and share your thoughts with others.

EZY TO SET UP AND GRATE TO USES

Reviewer: JOHN BERGERON (ASHFORD, CT)
Submitted: 11.22.2011

I LIKE THIS IT'S SO NICE TO HAVE A GREAT CUTTING EDGE ON MY TURNING TOOLS. THANK YOU

Sharpening and bench grinder

Reviewer: Gerald Vaughan (Yucaipa, CA)
Submitted: 11.11.2009

Just used it once on three tools. It worked great.

Complete 4pc Precision Sharpening & 8" Grinder

Reviewer: Chuck Schilling (Hudson, OH)
Submitted: 7.28.2009

Directions were a little sketchy

Complete four piece Sharpening and 8

Reviewer: Fred Griffin (Ozark, AL)
Submitted: 6.30.2009

I had some difficulty getting the height of the bench grinder above the mounting platform established, but other than that everything worked as advertised. I have never been able to sharpen tools freehand, and this setup allows me to put excellent edges back on my tools.

4pc Precision Sharpening AND 8

Reviewer: Marvin kaiser (Pasadena, TX)
Submitted: 3.24.2009

After set up,(very easy) I was sharpening my tools. The first time I did goof. I got the angle to short or too long. Now I'm doing it right. My tools have never been this sharp. I did make me a 2" v-groove block so that the gouge (finger nail jig) has the same setting every time.

Excellent combination!

Reviewer: Angel Cruz (Brooklyn, NY)
Submitted: 3.13.2009

I have always sharpened my chisels by hand and I felt I had become pretty adept at doing so. When my old grinder broke down I decided to purchase the combination 4 piece precision sharpening jig and the 8" grinder. What a major difference!! With this set I get a uniform, perfect edge on my wood chisels every time. I have since sharpened all my chisel all over again using the combination grinder and sharpening jigs. These sharpening jigs are a must for sharpening wood chisels, whether they are used for lathe work or wood carving.
