5/8" dia Super Spur Center Insert

Item #: LCENTQC58

Read 3 Reviews | Write a Review

$16.95

Availability: In Stock Ready to Ship See Shipping Details

View in Catalog Print

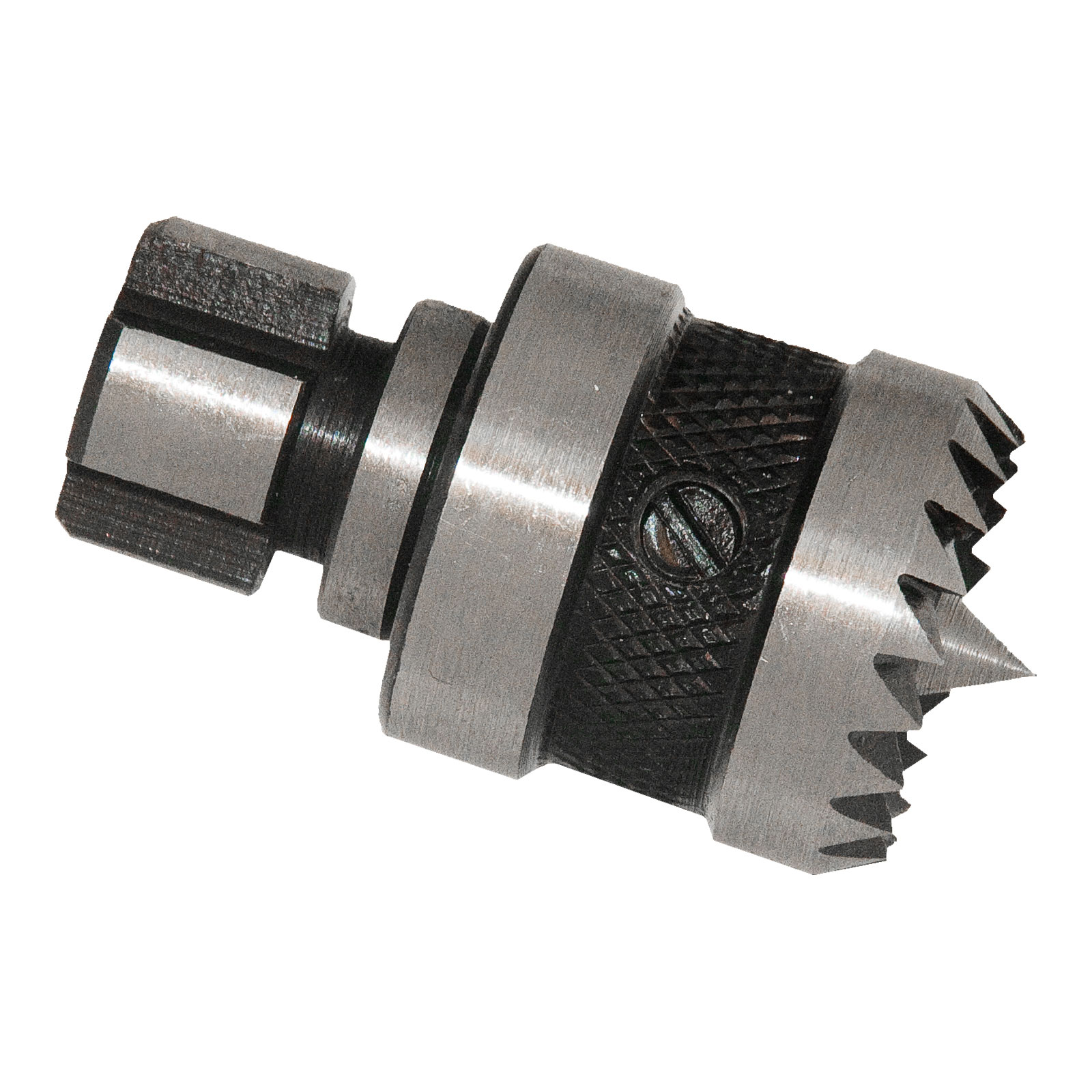

5/8" dia Super Spur Center Insert

We've taken our spring loaded drive center design and adapted it as a quick insert for a lathe chuck. No need to remove your chuck from your lathe when you want to convert to spindle work. Requires Jaws that close to 1/ 4" inside. Compatible with "C" series #2 and #3 Jaws.

5/8" dia Super Spur Center Insert Specifications

Specification	Description
Category:	Headstock Drive Centers

5/8" dia Super Spur Center Insert Customer Reviews

Average Customer Review: 5 out of 5 3 Reviews

Write an online review and share your thoughts with others.

Quick Change Over

Reviewer: James Wharry (Concord, CA)
Submitted: 8.1.2010

When turning bowl stock the 5/8" Super Spur allows me to make a quick change from inital spur drive to a tenon and chuck setup.

simply awesome!

Reviewer: derrick scheuren (halifax, PA)
Submitted: 9.2.2009

Nothing more needs to be said! This drive center works perfectly for what I need to do with my lathe. My headstock spindle has no mt cut into it so I thought I was gonna be outta luck, but with this drive center in my chuck I now have limitless possibilities ! Thank you so much psi!

Close, but not quite...

Reviewer: Pierre Mathieu (Arcadia, CA)
Submitted: 8.5.2009

This center has the advantage of convenience but has some problems too. While it is somewhat like a STEB center, the unidirectional set of the teeth make it a little like a saw if you apply too much tool and it saws a groove into your workpiece. It also can't really be used with the lathe running backward because of the set of the teeth (yes, there are reasons why you need to run the lathe in reverse). Lastly, the screw that holds the floating center in place needs to be something like a NYLOCK screw so it won't keep backing out and get lost along with the center pin.
