3 5HP DCSUPER35 Dust Collector with 1 Micron Super Sized 40" Canister

Item #: DCSUPER35S

Read 2 Reviews | Write a Review

$1,350.00

Availability: In Stock Ready to Ship See Shipping Details

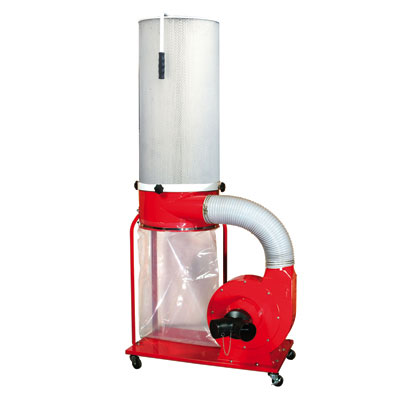

Introducing the most powerful state-of-the-art dust collection system in its class - Featuring a Super Sized 114sq ft Filter Canister
This 3.5HP 2000CFM 220V powerhouse will meet or exceed your most demanding dust collection needs. Suitable for collection from a single demanding machine or a complex ductork layout. includes super sized 40" high x 20" filter cartridge for exceptional dust control. Features of this model include:
"Y" inlet connects to 2 machines
14 steel" impeller delivers 2000 CFM
3.5 HP 220V motor
Max Static Pressure 13"
1-micron 114sq ft Filter Cartridge
For detailed specifications, click on the "Specifications" Tab

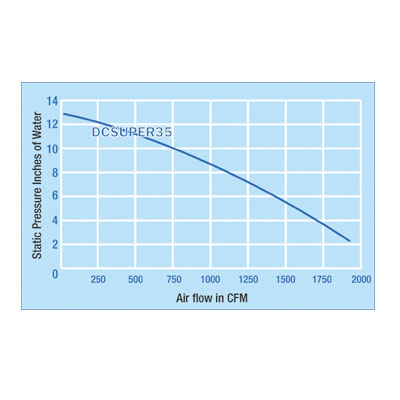

For Fan Curve, click on the fan curve image above

3 5HP DCSUPER35 Dust Collector with 1 Micron Super Sized 40" Canister Specifications

Specification	Description
Style:	Double Bag
Portability:	On Casters
Filter Type(s):	1 micron cannister
Main Filter area (sq ft):	114
Filter Specification:	99% @ 1 micron
Nominal Voltage:	220
Phases:	1
Collector Footprint:	37.5" x 20.5"
Height (inches):	82
Sound Rating db:	80db
Max Static Pressure (inches):	13
Max Airflow through collector (CFM):	2000
Running Amps:	17.5 @ 220V
Horsepower:	3.5
Main Inlet Size (inches):	7.75
Inlet Adapters Included:	7.75 to 6,6 to 2 @ 4
Impeller Size (inches):	13
Impeller Material:	Steel
Debris Collection Type:	Plastic Bag
Shop Size (sq ft):	Up to 5600sq ft
Run Length (ft):	75
Suitable for Ductwork:	Y
Suitable for Multiple Tools:	Y
Category:	Bag Style Dust Collectors

3 5HP DCSUPER35 Dust Collector with 1 Micron Super Sized 40" Canister Customer Reviews

Average Customer Review: 5 out of 5 2 Reviews

Write an online review and share your thoughts with others.

Very powerful

Reviewer: Scott Calkins (Owego, NY, )
Submitted: 5.15.2007

Setup took just minutes as most of the system was assembled. The only hard part was lifting the 3.5hp motor, but it was worth it. I had a 2hp unit from another company that I thought was strong, but the DCSUPER35 is REAL powerful. I still put my hand over the open ports and just grin because the unit is just so strong. And it has great capability

Great addition to my shop

Reviewer: Kevin K (Avon, CO, )
Submitted: 5.15.2007

I needed a very specific dust collector because of the limited space in my rather small woodshop and the demand of a 25
