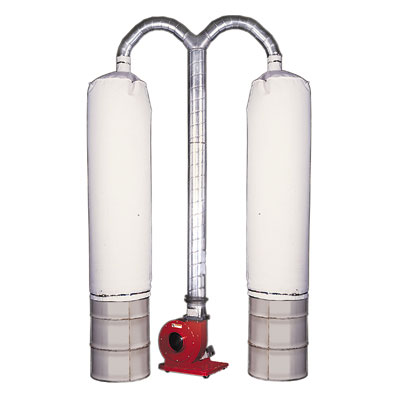

7.5HP DC3700-1M Dust Collecion System

A powerful system designed for the commercial woodship. Feature unrestricted collection, fine 1 micron filtration, and over 100 gallons of dust bin capacity (requires 2 user supplied 55 gal drums). Suitable for single or multiple machines and ductwork. 3700 cfm, single 10" inlet.

Style:	Motor Blower
Portability:	Moveable
Filter Type(s):	1 micron bags
Main Filter area (sq ft):	180
Filter Specification:	99% @ 1 micron
Nominal Voltage:	220,440
Phases:	1
Collector Footprint:	84" x 30"
Height (inches):	144
Sound Rating db:	83db
Max Static Pressure (inches):	18.8
Max Airflow through collector (CFM):	3700
Running Amps:	18 @ 220V
Horsepower:	7.5
Main Inlet Size (inches):	10
Impeller Size (inches):	18
Impeller Material:	Steel
Debris Collection Type:	Drum
Shop Size (sq ft):	Up to 5600sq ft
Run Length (ft):	75
Suitable for Ductwork:	Y
Suitable for Multiple Tools:	Y
Category:	Bag Style Dust Collectors

• Package Weight: 234.00 pounds
• Shipping Charge: Custom shipping – we will contact you for charges
• Packing: Item is shipped in its own box.
• Special Shipping notes: "Multi Package Item" must ship ground

Note: Above shipping policies apply to Continental US only. We will call or email to advise you of shipping policies to other locations.
