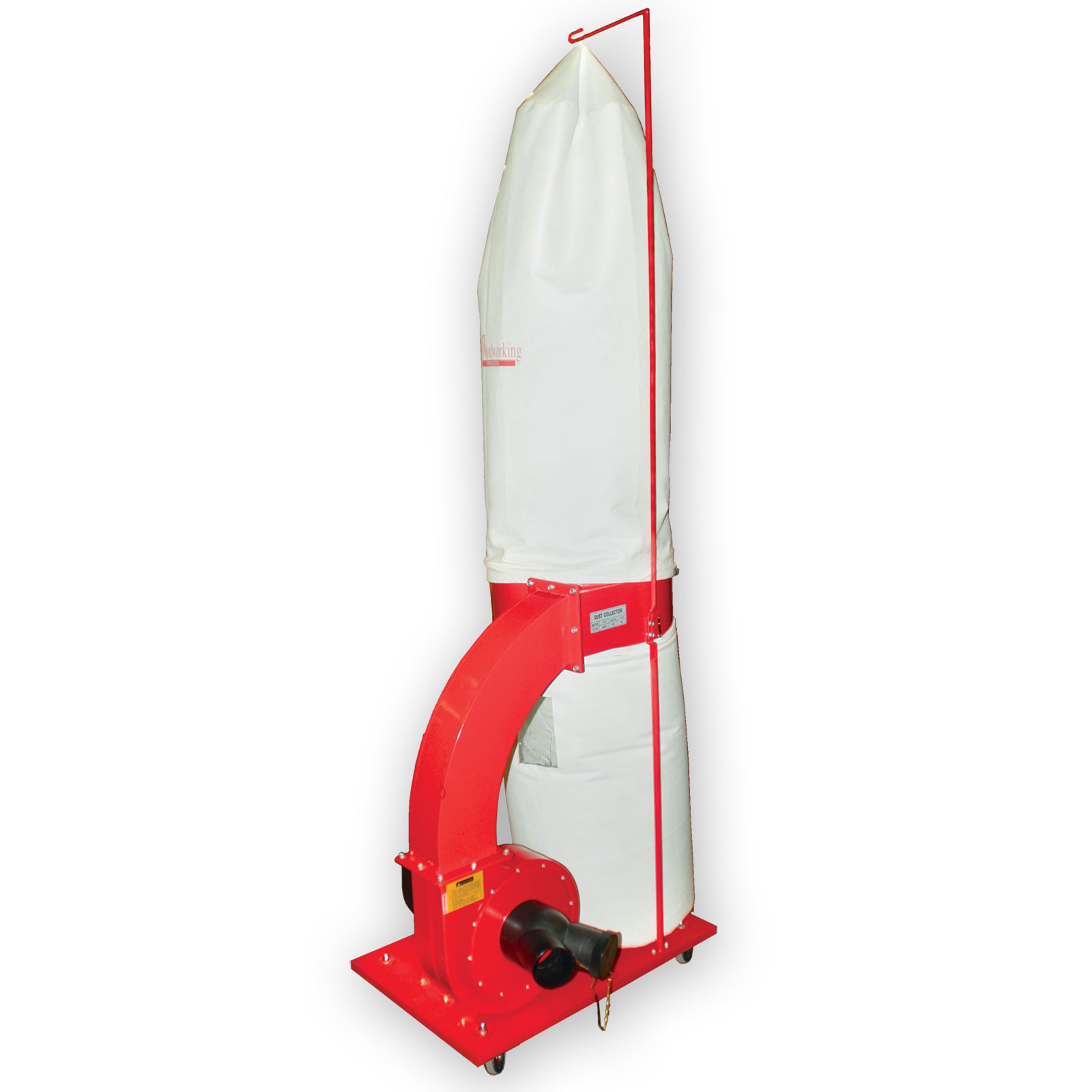

2HP DC2000B Dust Collector with 1 Micron Bags 2HP DC2000B Dust Collector with 1 Micron Bags
Out of Stock - Join the Wait List!

2HP DC2000B Dust Collector with 1 Micron Bags

Item #: DC2000B
Regular Price: $345.95
You Save: $60.00 (17%)
Availability: Out of Stock See Shipping Details
Out of Stock - Join the Wait List! Add to Wishlist


Description Specifications Customer Reviews

A 2HP Dust Collector with Quality, a Great Price and Exceptional Performance
Originally $345, this 2HP collector is ideal for any shop, large or small with 220V electrical service available. It gives superior air flow and improved service for long runs of hose. The unit generates 1500 CFM and will keep your shop dust free. It's on casters to move from machine to machine or connect it to a critical machine for standalone collection. Features of this model include:
"Y" inlet connects to 2 machines
12" impeller delivers 1500 CFM
Quiet and powerful
2 HP 220V motor
Max Static Pressure 9.5"
1-micron Vu-Thru Bags standard
For detailed specifications, click on the "Specifications" Tab

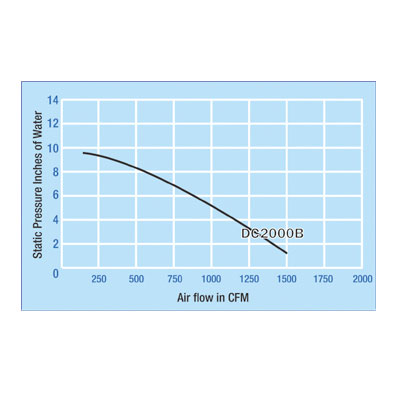

For Fan Curve, click on the fan curve image above

2HP DC2000B Dust Collector with 1 Micron Bags Specifications

Specification Description
Style: Double Bag
Portability: On Casters
Filter Type(s): 1 micron bags
Main Filter area (sq ft): 44
Filter Specification: 99% @ 1 micron
Nominal Voltage: 110220
Phases: 1
Collector Footprint: 33" x 22"
Height (inches): 92
Sound Rating db: 65db
Max Static Pressure (inches): 9.5
Max Airflow through collector (CFM): 1500
Running Amps: 9 @ 220V
Horsepower: 2
Main Inlet Size (inches): 6
Impeller Size (inches): 12
Impeller Material: Steel
Debris Collection Type: Fabric Bag, Canister 24"/40"
Shop Size (sq ft): Up to 1200sq ft
Run Length (ft): 30
Suitable for Ductwork: Y
Suitable for Multiple Tools: Yes, 8 to 10 Drops
Category: Bag Style Dust Collectors

2HP DC2000B Dust Collector with 1 Micron Bags Customer Reviews

Average Customer Review: 5 out of 55 out of 55 out of 55 out of 55 out of 5 11 Reviews

Write an online review and share your thoughts with others.

3 out of 53 out of 53 out of 53 out of 53 out of 5 DC2000B Dust Collector
Reviewer: S Mullins (Cyrus, MN)
Submitted: 1.28.2011

I have used this collector for several months now on a regular basis. It does have alot of suction, and I am very satisfied with that. It is fairly quite and well built. However, the bags that come with this unit let way too much dust escape back into the shop. You can literally see the dust poof out from the fabric of the bag into the air. I thought 1 micron bags would be pretty good. These are not. After the "cake" was built-up on the inside of the bag the dust leakage was less but still totally unacceptable. Initially I considered buying the unit with the canister filter and clear bottom bag for about $120 more. I regret not doing so. Now it will cost me alot more to upgrade. If you buy the DC2000, do it right and get the canister filter model. In a dust collector, filtration is the most important thing anyway.

5 out of 55 out of 55 out of 55 out of 55 out of 5 2 HP Dust Collector
Reviewer: steven allen (Lebanon, IN)
Submitted: 7.18.2010

I recently purchased this unit, 2HP DC2000B Dust Collector with 1 Micron Bags, well it's pretty tall with the bag but don't let that effect your decision. This is a wonderful piece of equipment, I hope in time to run some short ducting. It's a little louder than I hoped but not bad and it SUCKS and I mean that in a good way, lots of suction does a great job in my opinion and no dust flying around in the air. I'm quite pleased with my purchase and shipping was pretty quick for something this heavy. Would highly recomend this to anyone looking for a dust collector, great price and works well

5 out of 55 out of 55 out of 55 out of 55 out of 5 Eats Sawdust!
Reviewer: Steve Crusan (Mulkeytown, IL)
Submitted: 5.31.2010

This unit was easy to assemble. Pulls dust from places I didn't know existed. The only complaint is the casters don't roll well on my cement floor.

4 out of 54 out of 54 out of 54 out of 54 out of 5 Great Dust Collector -- Needs New Instructions
Reviewer: Norman Dresner (Severn, MD)
Submitted: 5.30.2010

As a dust collector, this is at least a 4-star and probably close to a 5-star item, but the instructions were at best 1-star. The only thing that saved the instructions was the parts diagram, the written directions quite often skipped vital steps. But, once assembled, the unit sucks up all of the fine dust -- and much of the larger particles that fall into the Big Gulp -- from my lathe exactly the way I'd hoped it would. My workshop is next to the laundry room and we can once again hang wet clothes and know that they'll be clean when they dry.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Extremely pleased
Reviewer: Rick Mathison (Zimmerman, MN)
Submitted: 6.23.2009

This baby really sucks. Before starting the unit up for the first time I accidentally dropped a quarter inch fender washer down inside the ducting. With no other option I decided to take my chances and hope it would not make it to the impellers. To make a long story longer this unit was able to pull the washer six feet horizontally, six feet vertically and then another twelve feet horizontally before dropping to the collector. The assembly instructions could have been a little clearer. The unit did have one small dent on the base. It would have been nice if the base was at least primed on the underside. Other than these small issues I couldn't be happier with the unit.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Less Mess
Reviewer: William Fortney (Marion, IN)
Submitted: 3.17.2009

I recently have returned to turning on the lathe. As much as I enjoy turning, I have limited time to do so. Even though I am lucky enough to have a dedicated wood shop I feel it is very important to clean up the mess after each session. My new dust collector has cut my clean up time a good 80 - 90% and has virtually eliminated the layer of dust that used to cover everything in the shop. I made my own adjustable track system to attach a Big Gulp Dust Hood directly to the back of the lathe so I can put it right where it needs to be to do the best job. I did make a grate from expanded metal that fits in the back of the dust hood that will hopefully keep the wrong thing from being sucked into the collector. I am very pleased with this dust collector and all the items purchased with it. I am also pleased with the noise level. Thank You for a great product. Bill

5 out of 55 out of 55 out of 55 out of 55 out of 5 Big Sucker
Reviewer: Rich LaBarge (Vista, CA)
Submitted: 3.11.2009

Lots of suction. Quiet, some assembly required, but easy to do.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Fantastic Dust collector
Reviewer: Thomas Herman (Longview, TX)
Submitted: 11.24.2008

I purchaced this DC 2 months ago and I just love it. It is efficent, quiet and powerful. I have a small shop and it does a great job on my planer, jointer, tablesaw, band saw and my sander. It is a wonderful improvement over my shop vac.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Good tool, Good value, Poor instructions
Reviewer: James Kassing (Saint Charles, MO)
Submitted: 9.24.2008

Great price and well made. I am impressed by its power and the fact that it is quieter then I expected! On the negative side... I would like to see the top bag supported better then so it looks full instead of hanging canvas. I have to say that the manual to put this together is about as poor as it gets. Items aren't labeled well (like when to use which screws) and key items like the motor support aren't even mentioned. This is one situation where it may be easier just to look at the picture on the cover and just put things where they make sense. Despite the assembly challenges, I would recommend this product to anyone considering one.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Excerpts reprinted from WOOD Magazine
Reviewer: Bob Hunter and Jeff Hall from WOOD Magazine (, )
Submitted: 1.31.2008

WOOD Magazine Dust Collector Review: Issue #182, March 2008. Performance grades for DC2000B: Airflow Performance: Excellent Quality of Bag Filtration: Excellent Absence of Dust Leakage: Excellent Ease of changing bags: Excellent Ease of mobility: Good Ease of assembly: Good
