1HP DC1BXL Dust Collector with 1 Micron Filter Canister & Collection Bags
1HP DC1BXL Dust Collector with 1 Micron Filter Canister & Collection Bags Image 1
Click thumbnail to view additional images
View larger

1HP DC1BXL Dust Collector with 1 Micron Filter Canister & Collection Bags

Item #: DC1BXL-CF2
$319.95
Quantity:
In Stock Ready to Ship
Shipping Charge: $52 shipping for ground service
Add to Wishlist
Tell A Friend
View in Catalog

Rating : Not yet rated
Holiday Shipping Details


Description Specifications Shipping Reviews and Awards

This Award Winning Popular 1HP Collector is Ideal for Portability and Use with Single Machine - Featuring Efficient Canister Filtration
The DC1B collector series has been our most popular system for those getting started in dust collecting in their shops. We have sold thousands of this style to safety-minded woodworkers. The 1-micron Canister filter provides over 30ft of efficient filtration. Features of this model include:

• "Y" inlet connects to 2 machines
• 10" impeller delivers 850 CFM
• Quiet and powerful
• 1HP 110V motor
• 850 CFM max airflow - 6.5" Max Static Pressure
• 1-micron 30 sq. ft canister>• For detailed specifications, click on the "Specifications" Tab

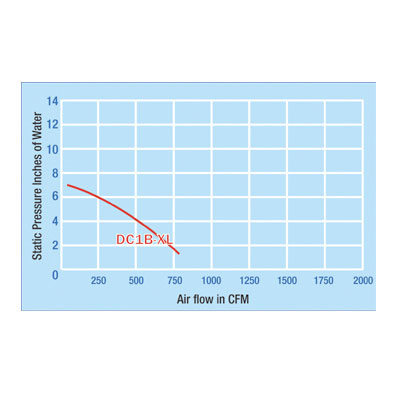

• For Fan Curve, click on the fan curve image above

Style: Double Bag
Portability: On Casters
Filter Type(s): 1 micron cannister
Main Filter area (sq ft): 30
Filter Specification: 99% @ 1 micron
Nominal Voltage: 110,220 - Prewired 110V
Phases: 1
Collector Footprint: 25" x 15"
Height (inches): 57
Sound Rating db: 62db
Max Static Pressure (inches): 6.5
Max Airflow through collector (CFM): 850
Running Amps: 12.4 @ 110V
Horsepower: 1
Main Inlet Size (inches): 5
Impeller Size (inches): 10
Impeller Material: Steel
Debris Collection Type: Plastic Bag
Shop Size (sq ft): Up to 400sq ft
Run Length (ft): 15
Suitable for Ductwork: N
Suitable for Multiple Tools: N
Category: Bag Style Dust Collectors
  • Package Weight: 88.00 pounds
  • Shipping Charge: $52 shipping for ground service
  • Packing: Item is shipped in its own box.
  • Special Shipping notes: "Multi Package Item" must ship ground

Note: Above shipping policies apply to Continental US only. We will call or email to advise you of shipping policies to other locations.
