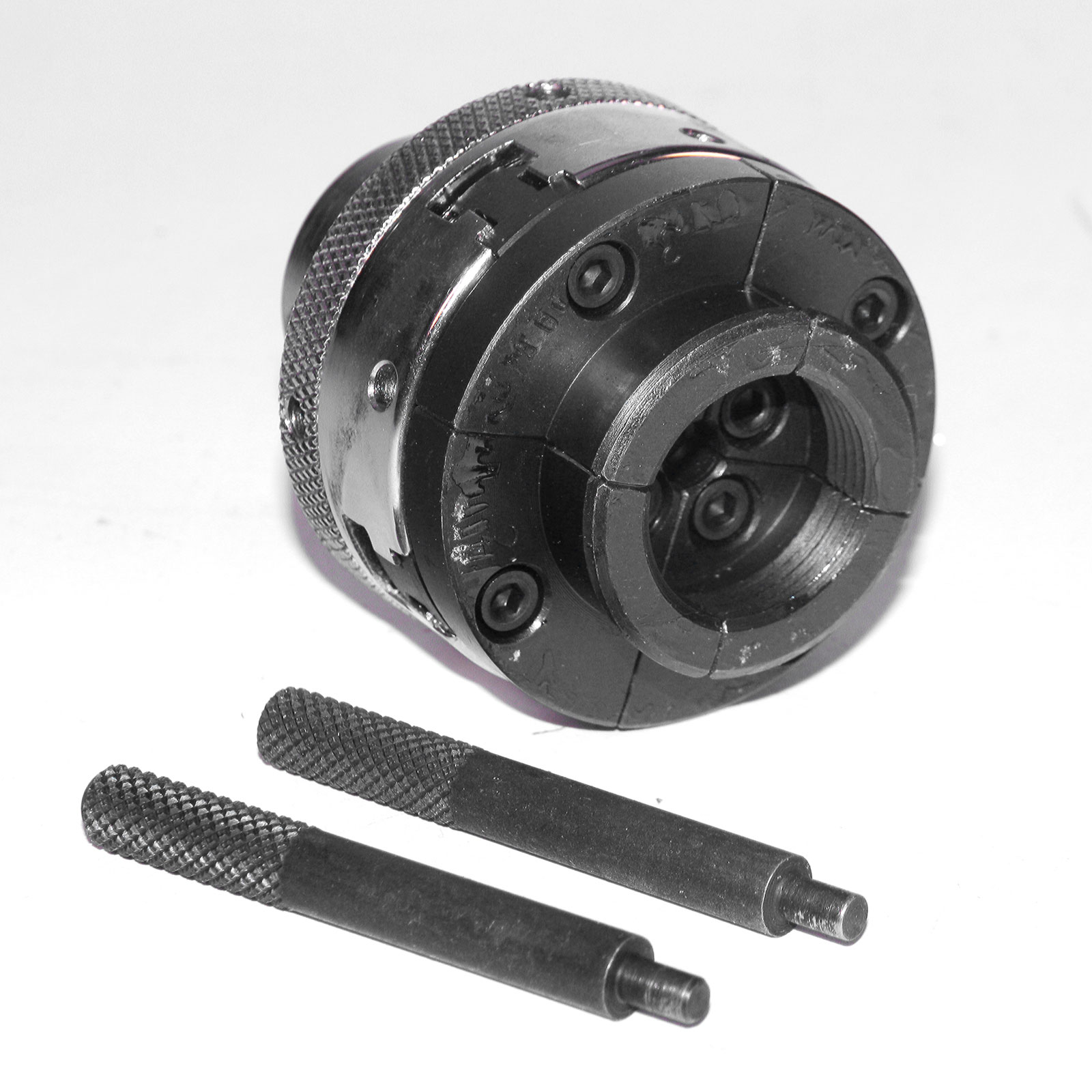

Barracuda3 Micro Lathe Chuck System: Lever Operated Barracuda3 Micro Lathe Chuck System: Lever Operated

Barracuda3 Micro Lathe Chuck System: Lever Operated

Item #: CSC500
Availability: In Stock Ready to Ship See Shipping Details
Quantity: Add to Wishlist
Now Accepting Paypal
View in Catalog View in Catalog Print Print


Description Specifications Customer Reviews

Ideal for small projects, cups, minatures & spindle work

The Barracuda3 Lever Operated Micro Lathe Chuck System is a full featured and complete scroll chuck system in a small package. It's a 4-jaw self-centering chuck system that fits mini, midi and micro lathes. Plus, with it's compact 2-1/8" body it's an ideal chuck for small projects, cups, miniatures and small spindle work. Adapts to lathes with either 3/4" x 16tpi or 1" x 8tpi. Chuck weight only 1 lb.

System includes:

  • #2 Round Jaws
  • Jaw Screw Allen Wrench
  • #1 Mini Step Jaw Set
  • 3/4" x 16tpi Headstock Adapter
  • Pin Jaws
  • Screw Chuck

Barracuda3 Micro Lathe Chuck System: Lever Operated Specifications

Specification Description
Type: Lever Operated
Compatible Spindle Sizes: 3/4" x 16tpi, 1" x 8tpi
Included Jaws: Pin,#1,#2
Pin Jaw Grip: Internal: 7/8" to 1-5/8"
#1 Step jaw gripping: External: 1/16 to 13/16", Internal : 5/8 to 1-3/4"
#2 Standard Jaw gripping: External: 7/8" to 2-1/2", Internal: 1-1/4" to 2"
#3 Large Round Jaw Gripping: Not Available
Large Flat Jaw Gripping: Not Available
Small Flat Gripping: Not Available
Category: Barracuda 4 Jaw Chucks

Barracuda3 Micro Lathe Chuck System: Lever Operated Customer Reviews

Average Customer Review: 5 out of 55 out of 55 out of 55 out of 55 out of 5 4 Reviews

Write an online review and share your thoughts with others.

3 out of 53 out of 53 out of 53 out of 53 out of 5 Just ok
Reviewer: William Wortel (Chicago, IL)
Submitted: 1.31.2011

Works well for holding smaller pieces, but both my father and I (who also has one) have had trouble securing larger blanks (e.g., for a goblet). One of the bars that came with mine broke while tightening. I emailed PSI customer service to request a replacement bar and received no response. I'm going to buy a different chuck with the key instead of the bars.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Great little chuck
Reviewer: MARK EAPMON (EVANSVILLE, IN)
Submitted: 7.25.2010

This is a great little chuck that comes with all the accessories you will ever need.

5 out of 55 out of 55 out of 55 out of 55 out of 5 A Great Little Chuck
Reviewer: Richard Peterson (Sequim, WA)
Submitted: 3.10.2009

I love it! I bought it to supplement my Nova Midi and I now rarely use the Nova. I turn mainly pens and bottle stoppers and the Barracuda micro chuck is the ticket.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Great Value
Reviewer: Anonymous (, )
Submitted: 2.16.2007

About two weeks ago I ordered the four jaw utility chuck from PSI. I got it in three days and have been using it on a regular basis. I have to say that I am very impressed with it for what I paid for it. I could not afford one of the more expensive ones, so I thought I would try this one and figured I could return it if I needed to. Any one looking for a budget chuck should take a look at this one.
