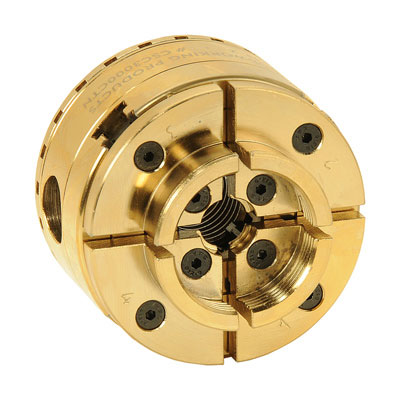

Barracuda2 T/N Plated Special Edition Lathe Key Chuck System

Item #: CSC3000CTN
Regular Price: $249.95
You Save: $30.00 (12%)
Availability: In Stock Ready to Ship See Shipping Details
Quantity: Add to Wishlist
Now Accepting Paypal


Description Specifications Customer Reviews Accessories

Turn in style. With one of the easiest to use, best valued chucks around.
With the 12 piece Barracuda2 T/N Plated Special Edition Lathe Key Chuck System you'll get all the features of our award winning Barracuda2 Lathe Chuck, PLUS additional features that will make this chuck your favorite:

  • Body and Jaws are plated with Titanium Nitride for superior durability
  • Chuck and Jaws are "C" series compatible for interchangeability between other PSI chuck bodies and jaws
  • Titanium plated small flat jaws for finishing bowls up to 5" diamater.
  • Titanium plated Super Spur Insert - simplifies converting over to spindle projects
  • Titanium indexing back plate
  • 12 piece system packed complete in a durable black blow molded case

Key Benefits:

  • Easy to use with one hand operation: The "T" handle key system makes it much easier to use than the lever, non-key chuck systems.
  • Will give you more turning confidence: Because you only need one hand to tighten the jaws, you can feel more confident and comfortable supporting your work with your free hand.
  • Powerful grip: to hold your work piece securely.
  • Smooth operation & balance: The Barracuda2 system is precision engineered and machined to provide you smooth operation and minimize vibration at almost any lathe speed.
  • Compatible for most woodturning projects: The variety of included jaw sizes and accessories means the Barracuda2 lathe chuck will mount most turning projects onto your lathe; including bowls, spindles, small turning projects and more.
  • Works with any Mini Lathe, Midi Lathe or Full Sized Lathe.
  • Changing jaws is quick and easy
  • Sturdy storage case for easy handling and organization: The blow molded plastic case will easily store, organize and secure the complete Barracuda2 Lathe Chuck System.
  • Virtually dust free use: the wood chips and dust clear out of the chuck drive gear with ease.

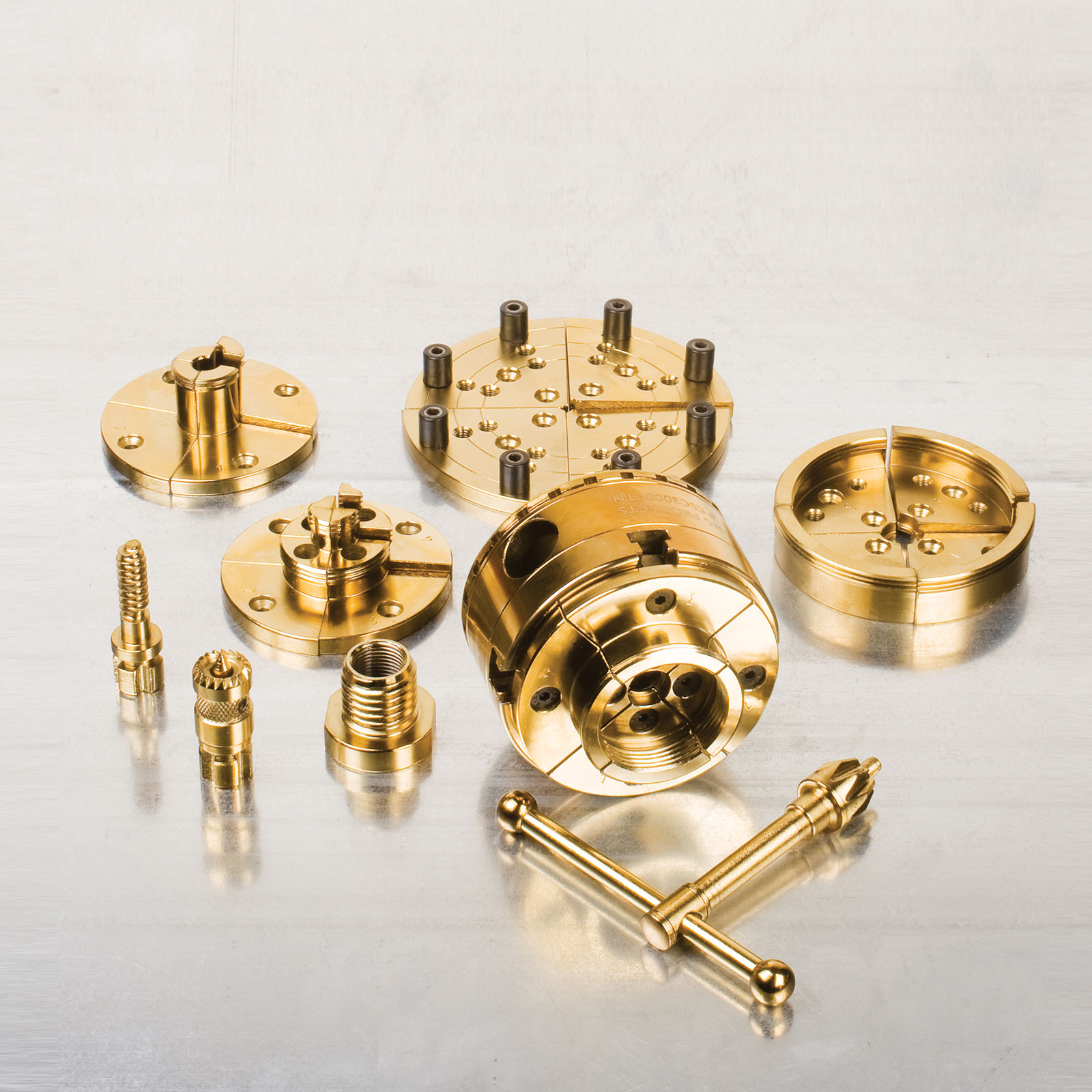

This complete Lathe Chuck system includes:

  1. #2 Jaws (Pre-Mounted)
  2. #1 Jaws
  3. #3 Round Jaws
  4. Pin Jaws
  5. Indexing Attachment
  6. Screw Chuck
  7. Headstock Adapter
  8. Jaw Key
  9. "T" handled Allen Wrench
  10. Small Flat Jaws
  11. 5/8" Super Center
  12. Attractive and durable black blow-molded case

Barracuda2 T/N Plated Special Edition Lathe Key Chuck System Specifications

Specification Description
Type: Key Operated, "C" Style
Compatible Spindle Sizes: 3/4" x 16tpi, 1" x 8tpi
Included Jaws: Pin,#1,#2,#3,Screw Chuck, Small Flat Jaws, 5/8" Super Center, Indexing Back Plate
Pin Jaw Grip: Internal: 1" to 2-1/4"
#1 Step jaw gripping: External: 3/32" to 1-3/8",Yes, Internal: 11/16" to 2-3/8",Yes
#2 Standard Jaw gripping: External: 1-1/2" to 2-5/8 " , Internal: 2" to 3-3/8",Yes
#3 Large Round Jaw Gripping: External: 3-1/16" to 4-3/8
Large Flat Jaw Gripping: External: up to 8" - Optional
Small Flat Gripping: External up to 5" - Included
Category: Barracuda 4 Jaw Chucks

Barracuda2 T/N Plated Special Edition Lathe Key Chuck System Customer Reviews

Average Customer Review: 5 out of 55 out of 55 out of 55 out of 55 out of 5 61 Reviews

Write an online review and share your thoughts with others.

3 out of 53 out of 53 out of 53 out of 53 out of 5 for the money...
Reviewer: Jeff Chapman (Georgetown, TX)
Submitted: 12.9.2011

I have a number of chucks and I bought this one because of the rave reviews about it and the price. This is a very average chuck. The key cams out when tightening and you must constantly tighten it up. I rate this as the bottom of professional chucks or mid to upper level for the weekeender.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Design Flaw
Reviewer: Dennis McGill (Rhinelander, WI)
Submitted: 12.25.2010

The #2 Standard Jaw covers 1-1/2" up to 2-5/8 while the #3 Large Round Jaw doesn't start covering until 3-1/16. Who designed this? Why isn't there a jaw size to cover this gap?

5 out of 55 out of 55 out of 55 out of 55 out of 5 Barracuda 2 T/N
Reviewer: Chet Millstead (Crestwood, KY)
Submitted: 12.21.2010

Smooth operation and does what it's supposed to do. A cheaper chuck I have has failed many times to hold the bowl I was turning. This one holds well. Although I haven't used it extensively I still consider it a product worthy of the price.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Barracuda2 chuck
Reviewer: Larry Aranda (Denver, CO)
Submitted: 10.14.2010

This unit works well, It really grabs the wood being turned. If the material is not true round to the chuck the jaws can be loosened and the wood adjusted so that is can be placed close to round on the chuck making it easier to complete.

4 out of 54 out of 54 out of 54 out of 54 out of 5 Barracuda Special Edition Chuck System
Reviewer: william kilquist (Carbondale, IL)
Submitted: 10.5.2010

Having ordered both the Barracuda from Penn and the Nova Super from Woodcraft I compared both chucks side by side. The Barracuda came with a case and a lot of attachments that the Nova did not. It would have cost me a lot more money to part up the Nova to match the Barracuda. You will have a lot of cleaning with the Barracuda due to the protectant finish that is applied to keep corrosion off but after that is done you will be well pleased. I sent my Nova chuck back to Woodcraft. The one thing that I wish Penn would do is provide free shipping like some of their competitors for orders over a certain amount of money. Orders of merchandise that can be purchased from other suppliers with identical items would lead a person away from Penn. I do like the quality I get from Penn though.

3 out of 53 out of 53 out of 53 out of 53 out of 5 options outweight quality
Reviewer: Jerry Thackery (Redmond, OR)
Submitted: 9.27.2010

The only operation item that I do not like is the jaw tightening chuck and key. It has a tendency to jump a teeth when bringing it to "tight". I am not impressed with the screw centering insert. The jaws are too shallow and allows wood to slip too easily. I am still exploring the other features.

5 out of 55 out of 55 out of 55 out of 55 out of 5 Wood Lathe Chuck
Reviewer: Bob Hough (Red Lion, PA)
Submitted: 9.21.2010

I am very pleased with my first impressions of the Barracude lathe chuck. I have used the chuck in making a few bowls and found the slides and mounting fixtures to be very smooth operating but two of the dovetail slides are looser than I would like, otherwise a good item for the money as compared to other brands.

5 out of 55 out of 55 out of 55 out of 55 out of 5 awesome
Reviewer: jeremy woods (auburn, IN)
Submitted: 9.18.2010

I have done wood lathe work for many years and just tried this 4 jaw chuck and I love it. very very good add on to any lathe. This is the best price of any of the others claiming to be the best.

5 out of 55 out of 55 out of 55 out of 55 out of 5 barracuda 2
Reviewer: Dick Howard (Emmett, ID)
Submitted: 9.14.2010

Nice shiny thing. Good fit and finish. Haven't used much yet but hope to soon. Packaging was very good. Nothing broken or cracked. No cleanup of parts. Only problem wasn't Penn States . UPS delivered a block from me. Had to track down, but Penn State was there to help.

5 out of 55 out of 55 out of 55 out of 55 out of 5 very nice set
Reviewer: Larry Spaur (ashland city, TN)
Submitted: 8.11.2010

THIS CHUCK SYSTEM IS EXCELLENT. IT WAS A LITTLE SMALLER THAN I VISIONED, BUT IT WORKS WELL WITH MY MINI LATHE.
