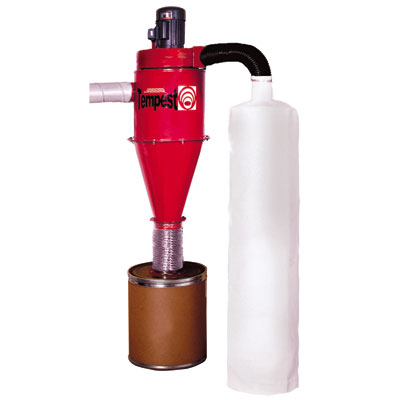

Improve Air Quality & Save with the PSI Small Shop 12" impeller Tempest Cyclone - Filter Bag Style
This small shop cyclone is ideal to connect to a single machine. Ideal for small basement or garage shop:
Up to 5 drops
Up to 15ft run
Shop size to 400sq ft
650 CFM
2.0 HP motor

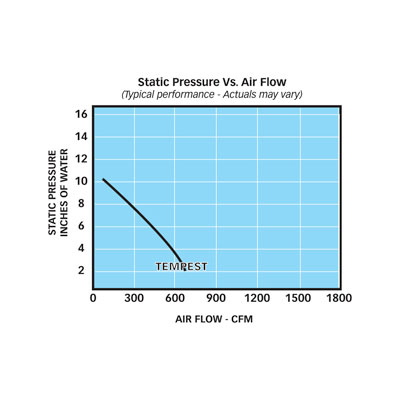

For TEMPEST Fan Curve click on the fan curve image above
.. for more ispecifications click on the "Specifications Tab"
More about PSI Tempest Cyclones
The TEMPEST advantage
PSI Tempest Cyclones are known to be the cleanest dust collection systems on the market. The cyclonic separation process captures 99.98% of all wood chips and dust particles that enter the collector. Centrifugal force drops particles of all sizes out of the air stream - everything from chips to microscopic particles. A dust bin positioned underneath the cyclone funnel captures the dust and chips in a trash container.
A Great Motor with a Great Warranty
TEMPEST motors are designed and manufactured by an ISO 9001 certified manufacturer for continuous duty. The motors offer such exceptional reliability that we offer a 5-year warranty on the motor/blower assembly.
The Most Effective Cyclonic Filtration Available
The high filtration bag on this TEMPEST model captures 99% of particles1 micron or larger.
Superior Construction
Durable17 gauge cyclone body construction
"Neutral Vane" intake for better performance
Includes sturdy wall mounting brackets
Small footprint and low height fits under 96" ceiling
Efficient Impellers
PSI impellers are aerodynamically designed and balanced to place less stress on the motor during start-up and while running - this products high static pressure and high CFM while their heavy-duty construction provides tolerance to any chips that may happen to pass through.
| Specification |
Description |
| Style: |
Cyclone |
| Portability: |
Stationary |
| Filter Type(s): |
1 micron Bag |
| Main Filter area (sq ft): |
32 |
| Filter Specification: |
99% @ 1 micron |
| Nominal Voltage: |
110, 220 |
| Phases: |
Single Phase |
| Collector Footprint: |
18"dia |
| Filter Footprint: |
13" dia |
| Height (inches): |
88 |
| Sound Rating db: |
73db |
| Max Static Pressure (inches): |
10 |
| Max Airflow through collector (CFM): |
650 |
| Running Amps: |
8 @ 220V |
| Horsepower: |
2 |
| Main Inlet Size (inches): |
5 |
| Impeller Size (inches): |
12 |
| Impeller Material: |
Aluminum |
| Debris Collection Type: |
Drum |
| Shop Size (sq ft): |
Up to 400sq ft |
| Run Length (ft): |
15 |
| Suitable for Ductwork: |
Y |
| Suitable for Multiple Tools: |
N |
|
