5HP TEMPEST "S" Series Cyclone Dust Collector with 15" Aluminum Impeller: 220V

Item #: TEMP1550S

$1,495.00

Availability: In stock, Ready to ship!

Product Instructions View in Catalog Print

Description
Specs
Reviews
Customer Q & A

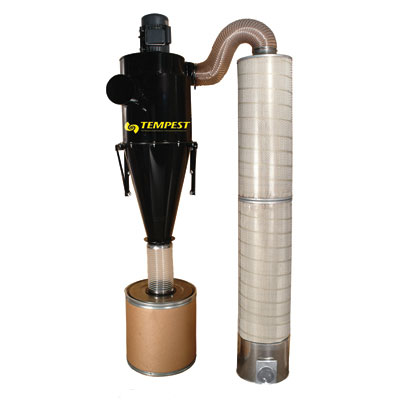

Improve Air Quality & Save with the PSI Commercial Shop 15" Super S impeller Tempest Cyclone Dual Cannister Style

This professional shop cyclone is ideal to connect to multiple machines. Ideal for large professional shop or dedicated connection to CNC routers and similar large dust creating machines:
Connects over 20 drops
Over 75ft run
Shop size over 5600sq ft
1800 CFM
5 HP 3Phase Motor
14.25 Max Static Pressure

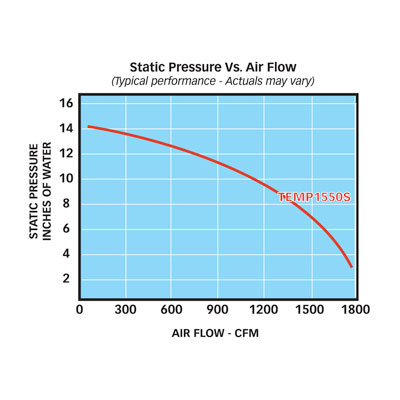

For TEMP1550S Fan Curve click on the fan curve image above
.. for more specifications click on the "Specifications Tab"

More about PSI Tempest Cyclones

The TEMP1550S advantage
PSI Tempest Cyclones are known to be the cleanest dust collection systems on the market. The cyclonic separation process captures 99.98% of all wood chips and dust particles that enter the collector. Centrifugal force drops particles of all sizes out of the air stream - everything from chips to microscopic particles. A dust bin positioned underneath the cyclone funnel captures the dust and chips in a trash container.

A Great Motor with a Great Warranty
TEMP1550S motors are designed and manufactured by an ISO 9001 certified manufacturer for continuous duty. The motors offer such exceptional reliability that we offer a 5-year warranty on the motor/blower assembly.

The Most Effective Cyclonic Filtration Available
The high filtration filter cannisters are certified to capture 99.98% of particles 1/2 micron or larger. In addition the filter media with 700 sq. ft.of filter media has over 5 times the filter area of our competition, you'll be cleaning your filters only once for every 5 times you'll clean a filter from a competitor.

Superior Construction

Durable17 gauge cyclone body construction
"Neutral Vane" intake for better performance
Includes sturdy wall mounting brackets
Small footprint and low height fits under 96" ceiling

Efficient Impellers
PSI impellers are aerodynamically designed and balanced to place less stress on the motor during start-up and while running - this products high static pressure and high CFM while their heavy-duty construction provides tolerance to any chips that may happen to pass through.

Specification	Description
Style:	Cyclone
Portability:	Stationary
Filter Type(s):	1/2 micron cannisters
Main Filter area (sq ft):	700
Filter Specification:	99.9% @ 1/2 micron
Nominal Voltage:	220
Phases:	3
Collector Footprint:	20"dia
Filter Footprint:	14" dia
Height (inches):	96
Sound Rating db:	75db
Max Static Pressure (inches):	14.25
Max Airflow through collector (CFM):	1800
Running Amps:	13 @ 220V 3 Phase
Horsepower:	5
Main Inlet Size (inches):	7
Inlet Adapters Included:	7" to 6"
Impeller Size (inches):	15
Impeller Material:	Aluminum
Debris Collection Type:	Drum
Shop Size (sq ft):	Up to 5600sq ft
Run Length (ft):	75
Suitable for Ductwork:	Y
Suitable for Multiple Tools:	Y
Category:	Cyclone Dust Collectors
